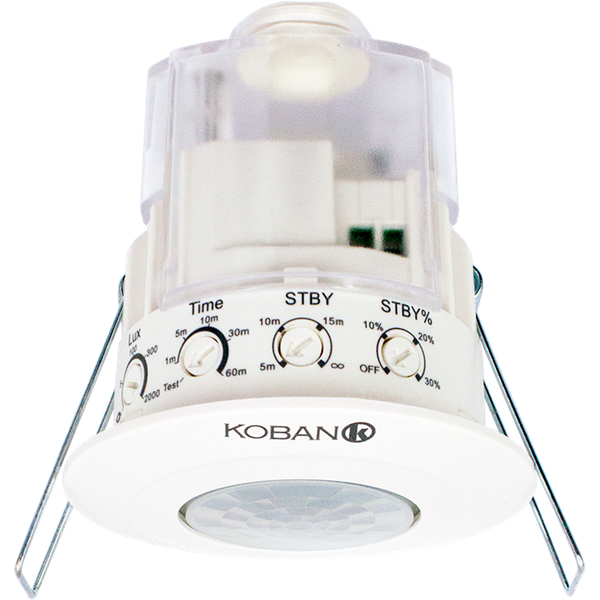

KDP DALI-PR2 - PIR DETECTOR
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
87,01 €
EAN: 8426487495122
MPN: 0767845
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KDP DALI-PR2 - PIR DETECTOR |
| Brand | KOBAN |
| Categories |
Motion & Presence Sensors
|
| Country of origin | CN |
| Harmonized System Code | 8536 1050 90 |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Width | 52 mm |
| Model | Presence detector |
| Height | 78 mm |
| Depth | 78 mm |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 3 m |
| Max. transmission range sideways | 8 m |
| Scan angle | 360 ° |
| Nominal voltage | 220-240 |
| Min. switch-on time | 60 s |
| Max. duty cycle | 60 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 2.5 m |
| Max. presence range | 64 m² |
Packing details
| Packing level 1 | 8426487495122 |
Other Technical data
| Halogen free | No |
| Surface protection | Other |
| Creep-under protection | No |
| Voltage type | AC |
| Switching-on delay | 360 s |
| Built-in depth | 78 mm |
| With remote control | Yes |
| Diameter | 75 mm |
| Built-in width | 75 mm |
| Built-in diameter | 75 mm |
| Staircase monitoring | Yes |
| Bridging switch | Yes |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | Yes |
| Response value luminosity | 5-2000 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 7 m |
| Remote operation | Yes |
| HVAC-control | No |
| Constant light control | Yes |
| Substation input | No |
| With signal unit | Yes |
| Teach-function for response value luminosity | Yes |
| Networkable | Yes |
| Forced switch off | No |
| Built-in length | 78 mm |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 0 ° |
| Pivoting range sensor, horizontal | 0 ° |
| Pivoting range sensor, vertical | 0 ° |
| Number of switching zones | 1 |
| IFTTT support available | No |
| Forced switch on | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Suitable for ceiling mounting | Yes |
| Anti-bacterial treatment | No |
Downloads
Description
Detector de presencia por tecnología PIR, con regulación DALI en base al protocolo DALI-2,destinado a montaje empotrado en techo. Permite ser controlado de forma remota mediante mando a distancia opcional, así como el aprovechamiento de la luz natural, función dimmer e iluminación en modo stand-by. Alcanza un campo de detección de 8 metros de diámetro y es ideal para su utilización en aquellas instancias en las que hay aporte de luz natural, pudiendo de esta forma regular mediante el detector el aporte de luz de la luminaria.
