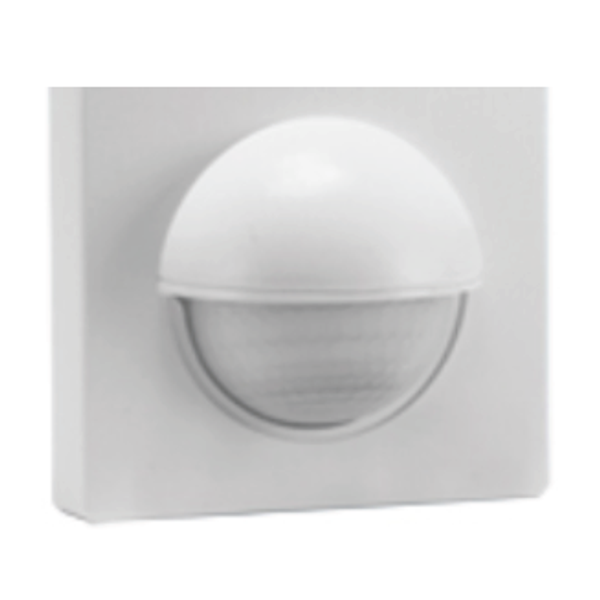

KDP DALI 04-PIR DETECTOR
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
83,05 €
EAN: 8426487579877
MPN: 0767960
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KDP DALI 04-PIR DETECTOR |
| Brand | KOBAN |
| Categories |
Motion & Presence Sensors
|
| Country of origin | CN |
| Harmonized System Code | 9032 8900 90 |
| Mounting method | Surface mounted (plaster) |
| Width | 80 mm |
| Model | Presence detector |
| Height | 80 mm |
| Depth | 65 mm |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 9 m |
| Max. transmission range sideways | 9 m |
| Scan angle | 360 ° |
| Nominal voltage | - |
| Degree of protection (IP) | IP40 |
| Min. switch-on time | 30 s |
| Max. duty cycle | 30 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 1.2 m |
| Max. presence range | 63.6157 m² |
Packing details
| Packing level 1 | 8426487579877 |
Other Technical data
| Halogen free | No |
| Surface protection | Untreated |
| Creep-under protection | Yes |
| Built-in depth | 31.5 mm |
| With remote control | Yes |
| Diameter | 50 mm |
| Built-in width | 31.5 mm |
| Built-in diameter | 31.5 mm |
| Staircase monitoring | No |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | Yes |
| Response value luminosity | 10-2000 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 9 m |
| Remote operation | Yes |
| HVAC-control | No |
| Constant light control | Yes |
| Substation input | No |
| With signal unit | No |
| Teach-function for response value luminosity | Yes |
| Networkable | Yes |
| Forced switch off | No |
| Built-in length | 31.5 mm |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 0-360 ° |
| Pivoting range sensor, horizontal | 0-360 ° |
| Pivoting range sensor, vertical | 0-360 ° |
| IFTTT support available | No |
| Forced switch on | No |
| Min. depth of built-in installation box | 31.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Suitable for ceiling mounting | Yes |
| Anti-bacterial treatment | No |
Downloads
Description
Detector de presencia por tecnología PIR con función DALI, montaje en pared. El KDP DALI 04 es un detector de presencia con sensor PIR (infrarrojo pasivo) y detector de nivel de luz integrado diseñado para controlar sistemas de iluminación inteligente DALI (Interfaz de iluminación con direccionamiento digital). Con una instalación fácil se pueden simplemente reemplazar el interruptor de pared existente o los interruptores de dos vías. Son ideales para aplicaciones residenciales y comerciales en salones, pasillos, escaleras, salas de conferencia, servicios públicos, etc.
