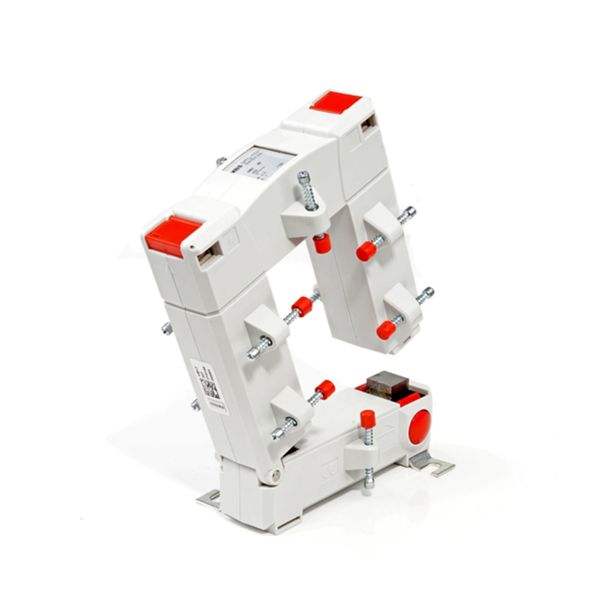

Primary current: 400 A, Secondary current max.: 5 A, Load: 1 VA, Tolerance class: 0,5, Split-core current transformer
Order only
Price (excl. VAT):
232,21 €
EAN: 4050118896237
MPN: 2753370000
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Primary current: 400 A, Secondary current max.: 5 A, Load: 1 VA, Tolerance class: 0,5, Split-core current transformer |
| Brand | Weidmüller |
| Categories |
Measurement Transformers
|
| Country of origin | HU |
| Harmonized System Code | 8504 3129 00 |
| Model | Cable rebuilding current converter |
| Primary rated current | 400 A |
| Secondary rated apparent power | 1 VA |
| Secondary rated current | 5 A |
| Overcurrent limiting factor | FS 5 |
| Accuracy class | 0.5 |
Packing details
| Packing level 1 | 4050118896237 |
Other Technical data
| Opening diameter | 55 mm |
| Number of primary inputs | 1 |
| With copper rail | Yes |
| Snap mounting | No |
| With shock protection | Yes |
| Calibrated | No |
| Height opening | 80 mm |
| Width opening | 50 mm |
| Secondary connection | Screw connection |
Description
Device for the precise measurement of the current consumption of a load connected by means of rms value methods. Asymmetrical cable feed-through and space-saving design.
