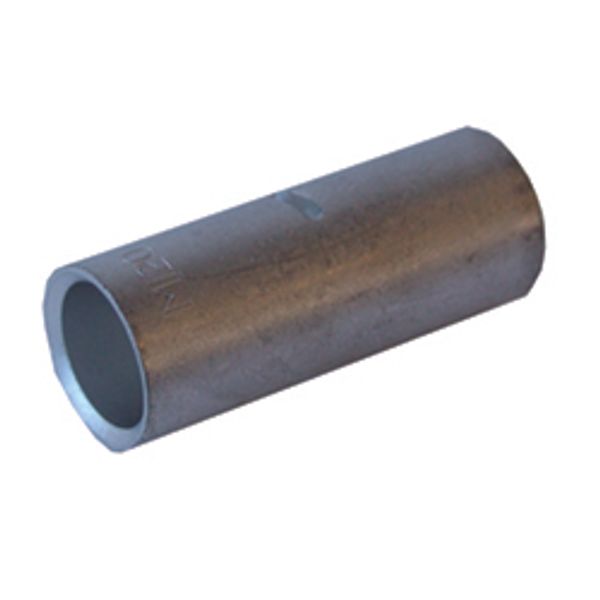

Fichero: Manguitos_Cobre_copia.jpg image 1

KCC 10 COBRE/COPPER

In stock: No Vendor stock: No Minimal order quantity: 100

Price (excl. VAT):

0,173 €

This price is valid until 31.12.25

Subtotal: 17,30 € MOQ: 100

EAN: 8426487467617

MPN: 0779982

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	KCC 10 COBRE/COPPER
Brand	KOBAN
Categories	Cable Crimps
Country of origin	CN
Harmonized System Code	8536 9010 00
Reel/roll packaging	No
Nominal cross section	10 mm²

Packing details

Packing level 1	8426487467617
Packing level 2	8426487467617

Other Technical data

Halogen free	No
Surface protection	Tinned
For pull protected connections	Yes
Material	Copper
Suitable for fine strand conductors	Yes
Suitable for flat conductors	Yes
Suitable for high temperatures (to 650 °C)	No
Suitable for insulated varnish	No
Suitable for solid conductors	No
Suitable for stranded conductors	Yes
Suitable for round conductors	Yes

Downloads

Declaration DOC CE (Declaration of conformity CE) Product data sheet Instructions for use

Description

Manguito fabricado en cobre electrolítico al 99% KCC 10 cobre, con recubrimiento de estaño. Diseñado para ofrecer alta resistividad mecánica a la tracción y vibraciones. Alta conductividad eléctrica, adecuado para cables de cobre. Con orificio de inspección y rebaje en los extremos para facilitar la entrada del cable.
