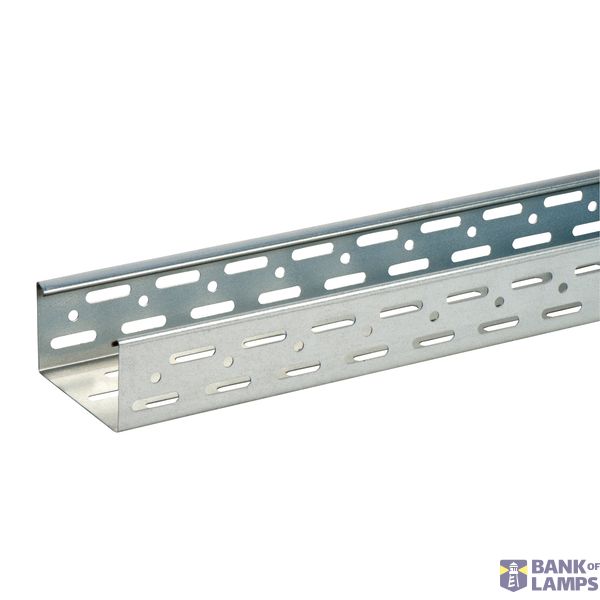

KB184Zplus GEPERF. 100 H=60 D=1.0 L=3

Name: KB184Zplus GEPERF. 100 H=60 D=1.0 L=3
Brand: Schneider Electric
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	KB184Zplus GEPERF. 100 H=60 D=1.0 L=3
Brand	Schneider Electric
Country of origin*	NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	7308 9098 00
ETIM	EC000047
Width	100 mm
Model	Without connector
Height	60 mm
Material thickness	1 mm
Side wall perforation	Yes
Length	3000 mm
Material	Steel
Mounting perforation in bottom	Yes
Useful cross section	6000 mm²
NATO-mounting holes	No
Suitable for circuit integrity	No
With cover	No

Packing level 1

3606480781995

RAL-number	0
Surface protection	Continuously galvanized zinc-aluminium
Weight	0 kg/m
Material quality	Other
Stainless steel, pickled	No
Wide span model	No
Span between supports according to IEC 61537	0 mm
Max. safe working load according to IEC 61537	0 N/m
