Kabeltrommel XREEL 310 2xCEE 16A 5p 400V 25m 5G2,5 N07V3V3-F K35 gelb IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Cable reel XREEL 310 2xCEE 16A 5p 400V 25m 5G2,5 N07V3V3-F K35 yellow IP54
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000191
Colour	Black
Core cross section	2.5 mm²
Cable assembly	Other
With adjustment	Yes
Cable length	25 m
Housing material	Plastic
Number of cores	5
Degree of protection (IP)	IP54
With mounting frame	Yes
With thermal protection	Yes
Number of CEE socket outlets	2
Type of mains connection	CEE

Packing details

Packing level 1

9003399331251

Downloads

Product data sheet

Description

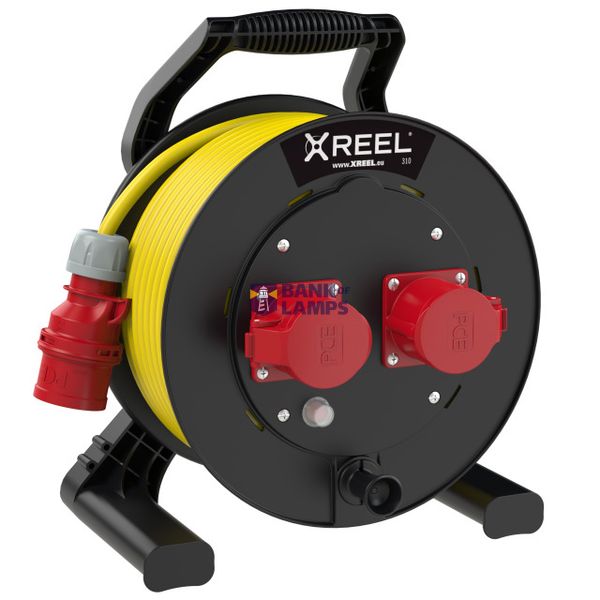

Cable Reel XREEL310
Reel (black) with central, internal locking mechanism
Protected connecting area
Solid carrying rack (black) with ergonomic handle
Central Plate with 2 CEE flanged sockets straight 16/5 6h (315-6f7)
Rated operating voltage: 400V
Rated current: 16A
Protection rating: IP54
25m Yellow cable N07V3V3-F 5G2.5mm2
CEE plug 16/5 6h IP44 nickel plated (015-6v)
XREEL310 installed ready for use
complies with RoHS directive 2011/65/EU
low voltage directive NSpRl 2014/35/EU
UV stability according ISO 4892-2
acc standard IEC/EN 61316
Protection rating complete system: IP54
