K12 equipotential bonding bar with UV-resistant cover

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

14,28 €

This price is valid until 24.12.25

EAN: 4013364101234

MPN: 563201

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	K12 equipotential bonding bar with UV-resistant cover
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Model	With covering cap
Construction type	Surface mounting modular
Number of connections flat conductor 30 mm	1
Number of connections flat conductor 40 mm	1
Number of connections conductor to 95 mm² fixed	10
Surface of the clamp	Galvanic tinned
Surface of the contact rail	Galvanic tinned
Material of clamp	Steel
Material of contact rail	Copper

Packing details

Packing level 1

4013364101234, 4013364101234

Other Technical data

Width	60 mm
Height	60 mm
Length	160 mm

Downloads

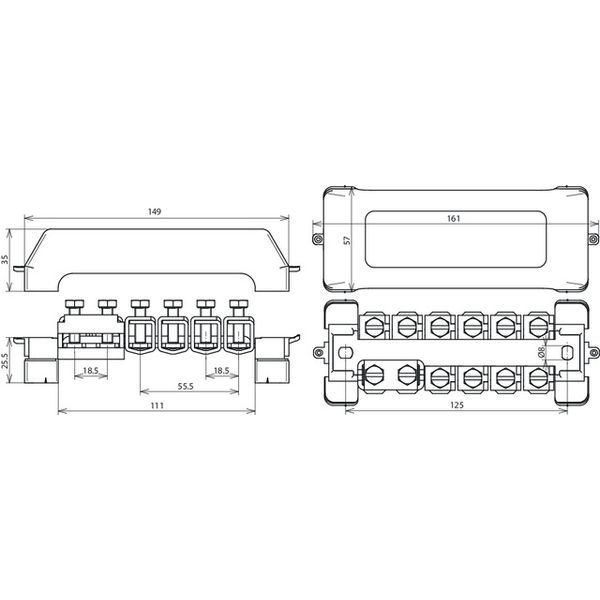

Product data sheet Dimensioned drawing

Description

Equipotential bonding busbar according to EN 62561-1, for protective and functional equipotential bonding according to IEC 60464-4-41/60364-5-54 (main earthing busbar) and lightning equipotential bonding according to IEC/EN 62305-3. UV-stabilised design, tested according to DIN VDE 0618-1, with CE sign, snap-on terminals St/gal Zn, fixing frames and grey (hologen-free) plastic cover, cover is sealable and can be labelled.
