Junction box, Type of protection IP66/IP67/IP69, max. 16², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, VDE, Halogen free

Name: Junction box, Type of protection IP66/IP67/IP69, max. 16², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, VDE, Halogen free
Brand: Spelsberg
Price: 42.710 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

42,71 €

This price is valid until 31.12.25

EAN: 4013902663743

MPN: 41600001

Package: 1

Box: 10

Pallet: 240

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Junction box, Type of protection IP66/IP67/IP69, max. 16², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, VDE, Halogen free
Brand	Spelsberg
Categories	Surface Mounted Junction Boxes
Country of origin	DE
Harmonized System Code	8538 9099 00
Halogen free	Yes
Equipped with	None
Rated insulation voltage Ui	1000 V
Sealable	Yes
Max. conductor cross section	16 mm²
Weatherproof	Yes
Degree of protection (IP)	IP66/IP67/IP69
Inlet from the rear	Yes

Packing details

Packing level 1	4013902663743
Packing level 2	4013902663767
Packing level 3	4013902663774

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Black
Width	182 mm
Depth	90 mm
Shape	Square
Surface protection	Untreated
Length	182 mm
Circuit integrity	None
Operating temperature	-35-80 °C
Material	Plastic
Number of inlets	12
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Preembossing
For Ex-Zone dust	None
Cover model	None
Castable	No
With casting compound	No
Transparent cover	No
Degree of protection (NEMA)	Other
Mounting in the soil	No
Mounting under water	No

Downloads

Product data sheet

Videos

Watch On Youtube

Description

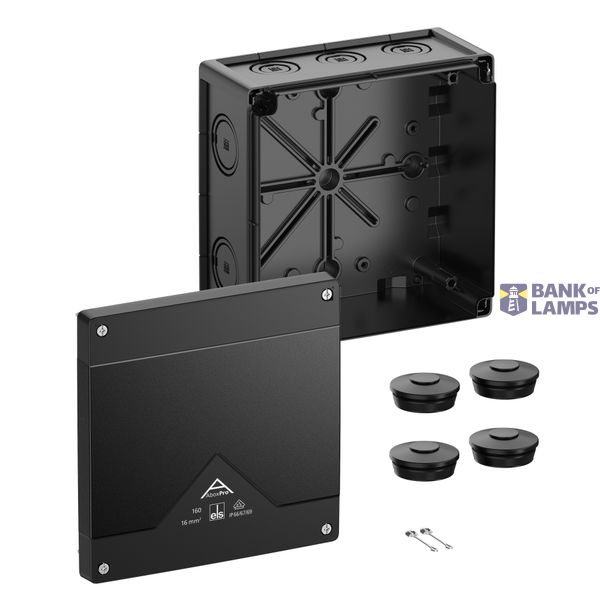

Junction box, protection class IP66/IP67/IP69, nominal cross-section 16mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M32/M40, (2 rear, 10 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas, black, Ui=1000 V AC, without terminals
Dimensions: 182 x 182 x 90mm
Accessories supplied: 4 double membrane seals IP66 M40 sealing range 17-28mm, cover retainer
