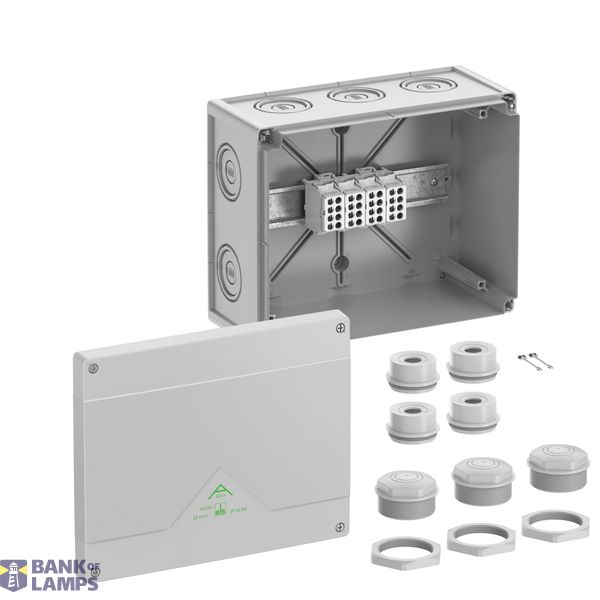

Junction box, Type of protection IP54/IP66 , max. 25², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, Halogen free

Name: Junction box, Type of protection IP54/IP66 , max. 25², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, Halogen free
Brand: Spelsberg
Price: 128.640 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

128,64 €

This price is valid until 31.12.26

EAN: 4013902663033

MPN: 48142501

Package: 1

Box: 4

Pallet: 84

Estimate delivery time to our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Junction box, Type of protection IP54/IP66 , max. 25², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, Halogen free
Brand	Spelsberg
Categories	Surface Mounted Junction Boxes
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9095 00
Halogen free	Yes
Rated insulation voltage Ui	690 V
Sealable	Yes
Max. conductor cross section	25 mm²
Weatherproof	Yes
Degree of protection (IP)	IP66
Inlet from the rear	Yes

Packing details

Packing level 1	4013902663033
Packing level 2	4013902663040
Packing level 3	4013902663064

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Grey
Width	252 mm
Depth	120 mm
Shape	Rectangular
Surface protection	Untreated
Length	202 mm
Circuit integrity	None
Operating temperature	-25-55 °C
Material	Plastic
Number of inlets	14
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Preembossing
For Ex-Zone dust	None
Cover model	None
Castable	No
With casting compound	No
Transparent cover	No
Degree of protection (NEMA)	Other
Mounting in the soil	No
Mounting under water	No

Downloads

Product data sheet

Videos

Watch On Youtube

Description

Junction box, protection class IP54/IP66, nominal cross-section 25mm², certified by DLG (Ammonia resistance), knockouts, M20/M25/M40/M50, (4 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations, grey, Ui=690 V AC, with standard rail-mounted main line junction terminals, 4-pole, clampable cross-sections per main line pole: 1.5-25mm² rigid (Cu/Al) and multi-wire (Cu), 1.5 -16mm² fine-wire with wire end ferrule (Cu). Clampable cross-sections per branch line pole 1.5-16mm² rigid (Cu/Al) and multi-wire (Cu), 1.5 -10mm² fine-wire with wire end ferrule (Cu). Rated current in accordance with EN 60947-7: 130 A (Cu) and 100 A (Al)
Dimensions: 252 x 202 x 120mm
Accessories supplied: 4 attachment bushes IP55 M40 sealing range 17-30mm, 3 twist plugs IP54 M50 sealing range 22-35mm, cover retainer
