Spelsberg

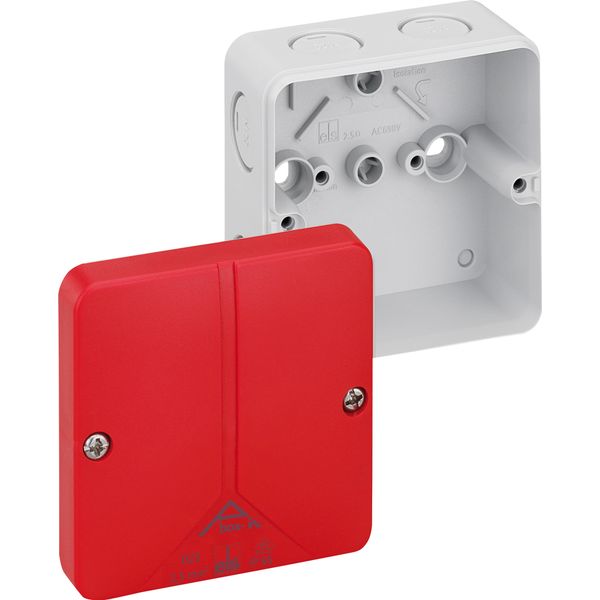

Junction Box Abox-i m 025 SB-L

In stock: No Vendor stock: No Minimal order quantity: 1 Not Available
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name Junction Box Abox-i m 025 SB-L
Brand Spelsberg
Country of origin DE
Harmonized System Code 8538 9099 00
Halogen free Yes
Rated insulation voltage Ui 690 V
Max. conductor cross section 2.5 mm²
Degree of protection (IP) IP66

Packing details

Packing level 1 4013902606573
Packing level 2 4013902606573, 4013902606580
Packing level 3 4013902606573, 4013902606597

Other Technical data

Mounting method Wall-/ceiling mounting
Colour Grey
Width 82 mm
Depth 52 mm
Shape Rectangular
Surface protection Untreated
Equipped with None
Length 82 mm
Sealable No
Circuit integrity None
Operating temperature -35-80 °C
Material Plastic
Number of inlets 6
Explosion-tested version No
Cover attachment Screwed
With screening No
Weatherproof Yes
Inlet from the rear Yes
For Ex-zone gas None
Tackable No
Type of housing feed-through Preembossing
For Ex-Zone dust None
Cover model Other
Castable Yes
With casting compound No
Transparent cover No
Mounting in the soil No
Mounting under water No

Description

Junction box-Industrial Quality-acc. to DIN EN 60670 (VDE 0606), Ui=690V, weatherproof, shock-proof, with knock-outs, M20, with IP66 double-membrane seals, M20, seal range 7-12mm, Red cover, without terminals, for identifying circuits for safety lighting

Accessories

Cable gland KVR M20
In stock: No
Spelsberg
Cable gland KVR M20
2,57 €
This price is valid until 31.12.25
EAN: 4013902011322
MPN: 24742001
Package: 1
Box: 50
Pallet: 32400
Estimate delivery time at our warehouse (approx.): 2-4 weeks
Lock nut GMU PA M20
In stock: No
Spelsberg
Lock nut GMU PA M20
0,383 €
This price is valid until 31.12.25
EAN: 4013902012503
MPN: 20842001
Package: 1
Box: 100
Pallet: 129600
Estimate delivery time at our warehouse (approx.): 2-4 weeks
Cable gland KVR M20-MGM
In stock: No
Spelsberg
Cable gland KVR M20-MGM
1,34 €
This price is valid until 30.06.25
EAN: 4013902012541
MPN: 22742001
Package: 1
Box: 50
Pallet: 32400
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Double-membrane seals DMS M20
In stock: No
Spelsberg
Double-membrane seals DMS M20
0,68 €
This price is valid until 31.12.25
EAN: 4013902013951
MPN: 26042001
Package: 1
Box: 50
Pallet: 64800
Estimate delivery time at our warehouse (approx.): 2-4 weeks
Terminal block Abox 025/040 KLS-2,5²/4²
In stock: No
Spelsberg
Terminal block Abox 025/040 KLS-2,5²/4²
2,70 €
This price is valid until 31.12.25
EAN: 4013902110230
MPN: 84000401
Package: 1
Box: 160
Pallet: 17280
Estimate delivery time at our warehouse (approx.): 2-4 weeks
Sealing kit Abox PST
In stock: No
Spelsberg
Sealing kit Abox PST
1,54 €
This price is valid until 31.12.25
EAN: 4013902110452
MPN: 89001001
Package: 1
Box: 500
Pallet: 27000
Estimate delivery time at our warehouse (approx.): 2-4 weeks
Double-membrane seals DMS M20/w
In stock: No
Spelsberg
Double-membrane seals DMS M20/w
0,68 €
This price is valid until 31.12.25
EAN: 4013902616657
MPN: 26012001
Package: 1
Box: 50
Pallet: 64800
Estimate delivery time at our warehouse (approx.): 2-4 weeks
Clamp mount Abox 025/040 KLH-SL 0.2/4²
In stock: No
Spelsberg
Clamp mount Abox 025/040 KLH-SL 0.2/4²
0,93 €
This price is valid until 31.12.25
EAN: 4013902651771
MPN: 84000201
Package: 1
Box: 20
Pallet: 25920
Estimate delivery time at our warehouse (approx.): 2-4 weeks
Cable gland KVR M20-GDB/MGM
In stock: No
Spelsberg
Cable gland KVR M20-GDB/MGM
3,13 €
This price is valid until 30.06.25
EAN: 4013902858026
MPN: 22742101
Package: 1
Box: 30
Pallet: 19440
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Cable gland KVR M20-GDB
In stock: No
Spelsberg
Cable gland KVR M20-GDB
2,65 €
This price is valid until 31.12.25
EAN: 4013902858071
MPN: 24742101
Package: 1
Box: 40
Pallet: 25920
Estimate delivery time at our warehouse (approx.): 2-4 weeks
