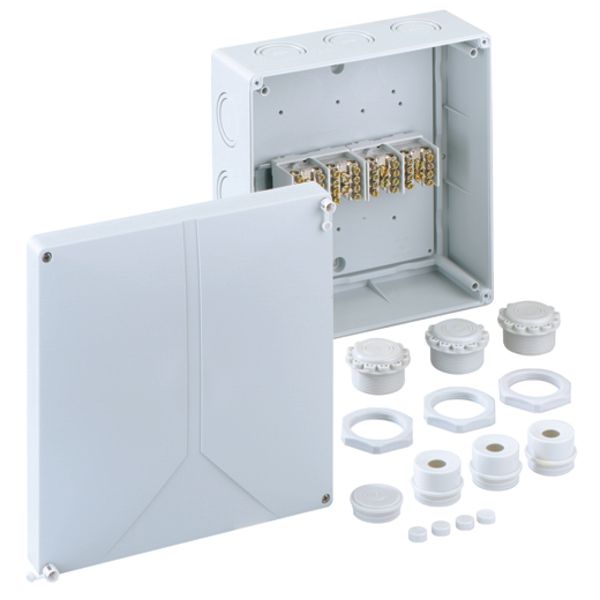

Junction Box Abox HA 350, Max. Conductor 35 mm², 690 V AC, IP54/IP65, IK07, 250 × 250 × 115 mm, Grey, Knockouts M25/M32/M40/M50
Discontinued
EAN: 4013902858224
MPN: 48043501
Package: 1
Box: 4
Pallet: 168
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | Junction Box Abox HA 350 |
| Brand | Spelsberg |
| Categories |
Surface-Mounted Junction Boxes
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9095 00 |
| ETIM | EC002600 |
| Halogen free | Yes |
| Equipped with | Clamp |
| Rated insulation voltage Ui | 690 V |
| Sealable | No |
| Max. conductor cross section | 35 mm² |
| Weatherproof | No |
| Degree of protection (IP) | IP65 |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 4013902858224 |
| Packing level 2 | 4013902858224, 4013902311750 |
| Packing level 3 | 4013902858224, 4013902311767 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | Grey |
| Width | 250 mm |
| Depth | 115 mm |
| Shape | Rectangular |
| Surface protection | Untreated |
| Diameter | 0 mm |
| Length | 250 mm |
| Circuit integrity | None |
| Operating temperature | -25-40 °C |
| Material | Plastic |
| Number of inlets | 14 |
| Explosion-tested version | No |
| Cover attachment | Screwed |
| With screening | No |
| For tube diameter | Other |
| For Ex-zone gas | None |
| Tackable | No |
| Type of housing feed-through | Preembossing |
| For Ex-Zone dust | None |
| Cover model | Other |
| Castable | Yes |
| With casting compound | No |
| Transparent cover | No |
| Mounting in the soil | No |
| Mounting under water | No |
Downloads
Description
Junction Box Abox HA 350
Accessories
Order only
0,302 €
MOQ: 1
EAN: 4013902013722
MPN: 21342001
Package: 1
Box: 50
Pallet: 64800
Order only
0,493 €
MOQ: 25
Subtotal: 12,32 €
MOQ: 25
EAN: 4013902013746
MPN: 21342501
Package: 1
Box: 25
Pallet: 32400
Order only
0,73 €
MOQ: 50
Subtotal: 36,50 €
MOQ: 50
EAN: 4013902616657
MPN: 26012001
Package: 1
Box: 50
Pallet: 64800
Order only
1,43 €
MOQ: 50
Subtotal: 71,50 €
MOQ: 50
EAN: 4013902616695
MPN: 26012501
Package: 1
Box: 50
Pallet: 64800
Order only
0,319 €
MOQ: 100
Subtotal: 31,90 €
MOQ: 100
EAN: 4013902852161
MPN: 23142001
Package: 1
Box: 100
Pallet: 64800
Order only
0,54 €
MOQ: 50
Subtotal: 27,00 €
MOQ: 50
EAN: 4013902852178
MPN: 23142501
Package: 1
Box: 50
Pallet: 64800
Order only
1,17 €
MOQ: 50
Subtotal: 58,50 €
MOQ: 50
EAN: 4013902852185
MPN: 23143201
Package: 1
Box: 50
Pallet: 64800
Order only
1,56 €
MOQ: 25
Subtotal: 39,00 €
MOQ: 25
EAN: 4013902855704
MPN: 23144001
Package: 1
Box: 25
Pallet: 32400
Order only
1,61 €
MOQ: 10
Subtotal: 16,10 €
MOQ: 10
EAN: 4013902859962
MPN: 20345001
Package: 1
Box: 10
Pallet: 6480
Order only
0,77 €
MOQ: 20
Subtotal: 15,40 €
MOQ: 20
EAN: 4013902890606
MPN: 21343201
Package: 1
Box: 20
Pallet: 12960
