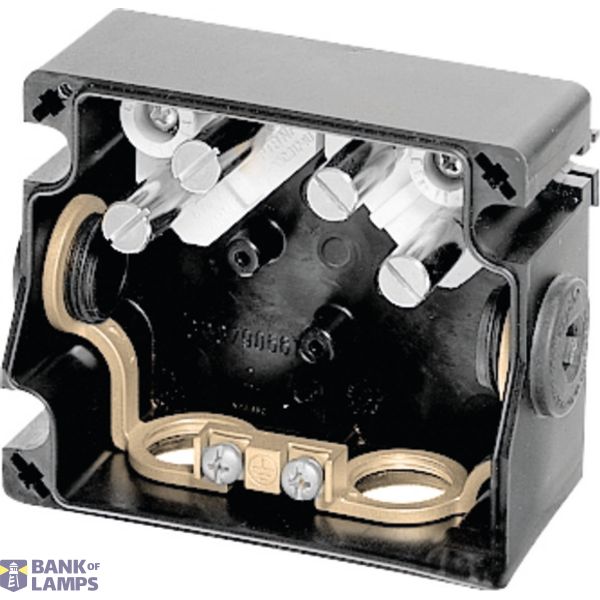

JUNC. BOX EAZK96 1 4 X M25 PLASTIC
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | JUNC. BOX EAZK96 1 4 X M25 PLASTIC |
| Brand | EATON |
| ETIM | EC002713 |
| Mounting method | Surface mounted (plaster) |
| Colour | Black |
| Halogen free | Yes |
| Material | Plastic |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 4250217405020 |
Other Technical data
| Width | 180 mm |
| Depth | 61 mm |
| Surface protection | Untreated |
| Extension possible | No |
| With transparent cover | No |
| With cover | Yes |
| Number of connection clamps | 4 |
| Rated insulation voltage Ui | 690 V |
| Length | 122 mm |
| Sealable | No |
| Type of inlet | Other |
| Circuit integrity | None |
| Operating temperature | -20-40 °C |
| Number of inlets | 4 |
| Explosion-tested version | Yes |
| Impact strength | IK08 |
| Cover attachment | Screwed |
| Max. conductor cross section | 2.5 mm² |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Material plate thickness cabinet | 3 mm |
| Degree of protection (NEMA) | Other |
Description
Ex-e Terminal box GHG 791 01 for Zone 1/21, 4 x M25 cable gland, direct drilled enclosure4 x 2.5 mm² + 2x2.5 mm², 1 PE, cage clamp terminals, enclosure mat.: polyamide
