Jet pump JP 4-47 PM1 1x230V 50Hz 1,5m SCHUKO
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Jet pump JP 4-47 PM1 1x230V 50Hz 1,5m SCHUKO |
| Brand | GRUNDFOS |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7051 00 |
| ETIM | EC010737 |
| Nominal current | 3.9 A |

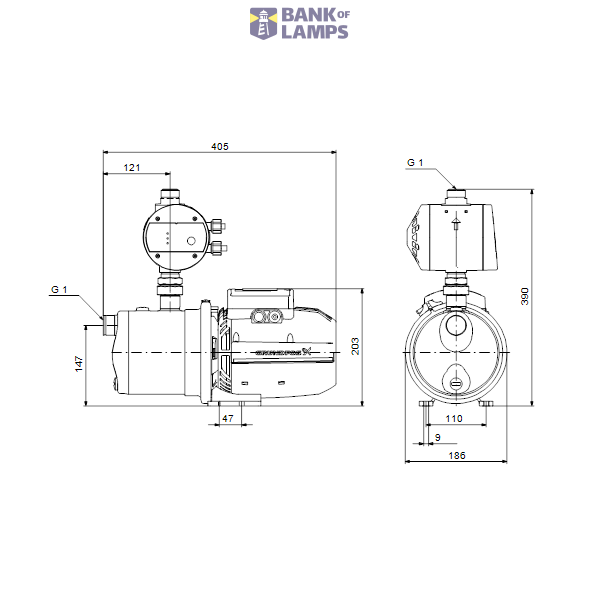

| Width | 186 mm |
| Height | 390 mm |
| Number of phases | 1 |
| Material reservoir | Plastic |
| Cable length | 1.5 m |
| Max. discharge flow | 4 m³/h |
| Max. static height | 43.4 m |
| Flange shape | Other |
| Length | 405 mm |
| Rotational speed | 2800 1/min |
| Ambient temperature | 0 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | No |

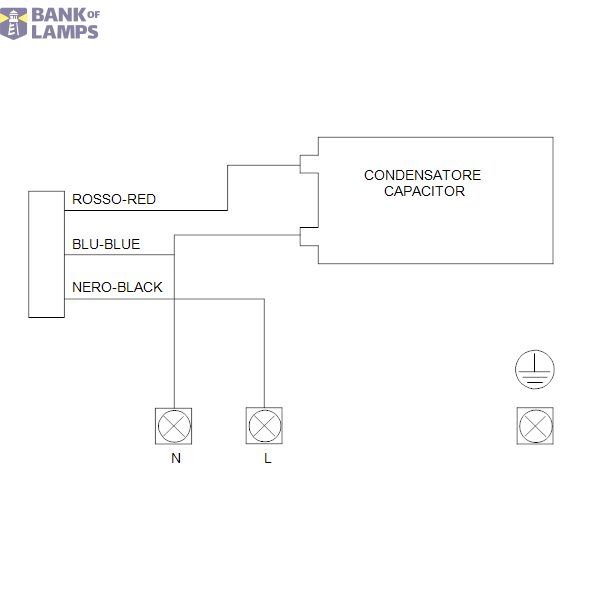

| Electrical connection | Connection cable with plug |
| Rated voltage | 220 V |
| Frequency | 50 Hz |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Polypropylene (PP) |
| Motor power input (P1) per motor | 0.84 kW |
| Motor power output (P2) per motor | 0.55 kW |
| Volume flow rate (BEP) | 4 m³/h |
| Discharge head at flow rate (BEP) | 164.71 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Communication | None |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | No |
| Interface signal 0-20 mA / 4-20 mA | No |
| Interface PT100 / PT1000 / PTC | No |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Motor speed control | None |
| Max. operating pressure | 6 bar |
| Material quality reservoir | Other |
| Suitable for tap water | Yes |
| Material pump casing | Stainless steel |
| Insulation class according to IEC | F |
| Material quality pump casing | Stainless steel 304 (1.4301) |
| Number of pumps | 1 |
| Suction installation | Yes |
| With bypass pipe | No |
| Medium temperature (continuous) | 0 °C |
| Material quality impeller/pump wheel | PP-GF |
| Suitable for rainwater | Yes |
| Connection inlet side | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter connection inlet side | 1 inch (25) |
| Nominal diameter connection outlet side | 1 inch (25) |
| Suitable for sprinkling/irrigation | Yes |
| Connection outlet side | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Flange compression stage connection inlet side | PN 6 |
| Flange compression stage connection outlet side | PN 6 |
| Degree of protection (IP) cabinet | IP44 |
| Degree of protection (IP) pump | IP44 |
Packing details
| Packing level 1 | 5713830350225, 5713830350225 |
Downloads
Description

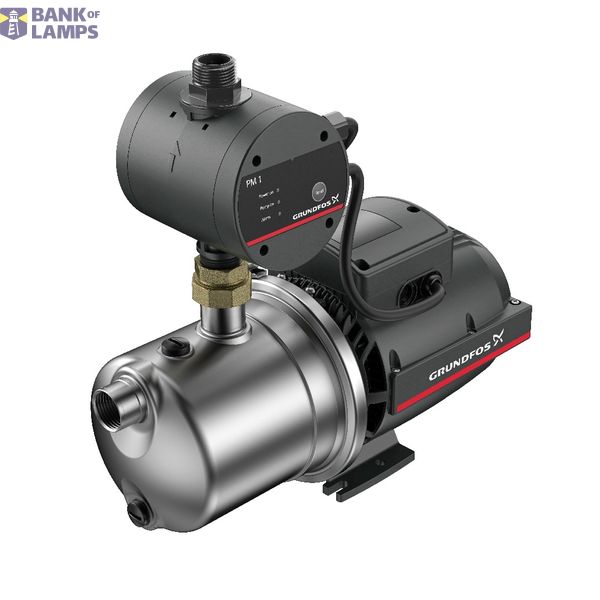

Grundfos JP 4-47 PM1 booster consists of a Grundfos JP pump and a pressure manager.
