Jet pump JP 3-42 1x230V 50Hz 1,5m SCHUKO
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Jet pump JP 3-42 1x230V 50Hz 1,5m SCHUKO |
| Brand | GRUNDFOS |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7051 00 |
| ETIM | EC010326 |
| Nominal current | 3.2 A |
| Number of phases | 1 |
| Cable length | 1.5 m |
| Max. discharge flow | 3 m³/h |
| Max. static height | 42.9 m |
| Type of drive | Electrical |
| Rotational speed | 2850 1/min |
| Material pressure tank | Other |
| Ambient temperature | 0 °C |
| Electrical connection | Connection cable with plug |
| Rated voltage | 220 V |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP44 |
| With rotational speed/frequency control | No |
| Noise emission | 68 dB(A) |
| With automatic start/stop | No |
| Material impeller/pump wheel | Other |
| With pressure tank | No |
| Motor power input (P1) per motor | 0.7 kW |
| Volume flow rate (BEP) | 3 m³/h |
| Discharge head at flow rate (BEP) | 175.49 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Motor speed control | None |
| Max. operating pressure | 6 bar |
| Max. suction height | 8 m |
| Material pump casing | Stainless steel |
| Insulation class according to IEC | F |

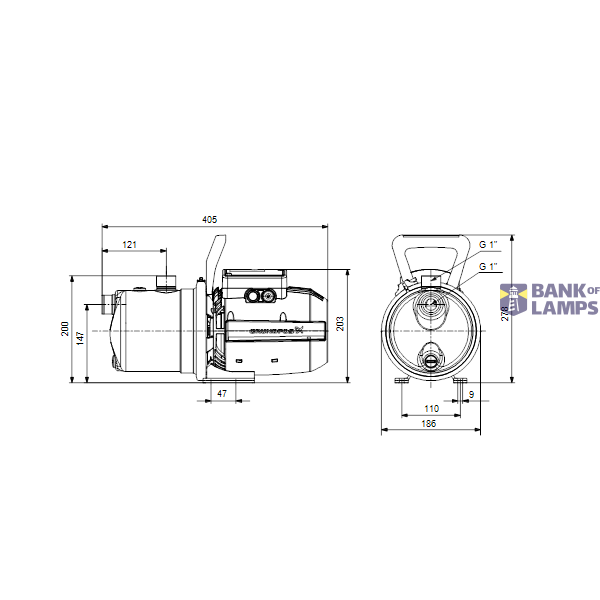

| Height of suction end | 147 mm |
| Height of pressure end | 200 mm |
| Pump length | 405 mm |
| Length of centre pressure/suction connection | 93 mm |
| Material quality pump casing | Stainless steel 304 (1.4301) |
| Medium temperature (continuous) | 0 °C |
| Material quality impeller/pump wheel | PP-GF |
| Connection inlet side | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter connection inlet side | 1 inch (25) |
| Nominal diameter connection outlet side | 1 inch (25) |
| Connection outlet side | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Flange compression stage connection inlet side | PN 6 |
| Flange compression stage connection outlet side | PN 6 |
Packing details
| Packing level 1 | 5713829460089, 5713829460089 |
Downloads
Description
Self-priming single-stage centrifugal jet pump with axial inlet and radial outlet for easy adaption to local piping system.Ideal for transferring water from wells or ground tanks in a large variety of installations and it has excellent suction capacity.
