IYON S LED1900-930 LDO 3CY WFL-S BK - LED spotlight
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
539,12 €
EAN: 4053167343110
MPN: 60715093
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | IYON S LED1900-930 LDO 3CY WFL-S BK - LED spotlight |
| Brand | Zumtobel |
| Categories |
Track lights and accessories
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

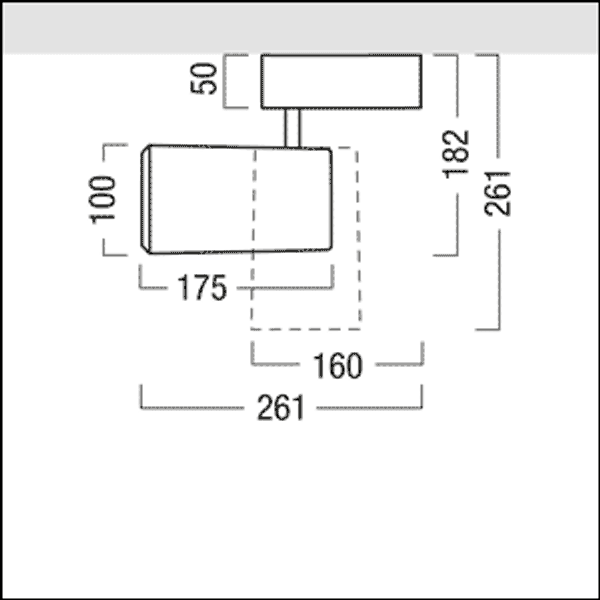

| Width | 100 mm |
| Colour rendering index CRI | 90-100 |
| Length | 160 mm |
| Height/depth | 261 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 3000 K |
| Max. system power | 24 W |
| Rated luminous flux according to IEC 62722-2-1 | 1900 lm |
| Luminaire efficacy | 80 lm/W |
Packing details
| Packing level 1 | 4053167343110, 4053167343110 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Busbar adapter |
| Colour housing | Black |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Connectable conductor cross section | 1.5-2.5 mm² |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | Yes |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 19 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 13 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 85 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
Downloads
Description

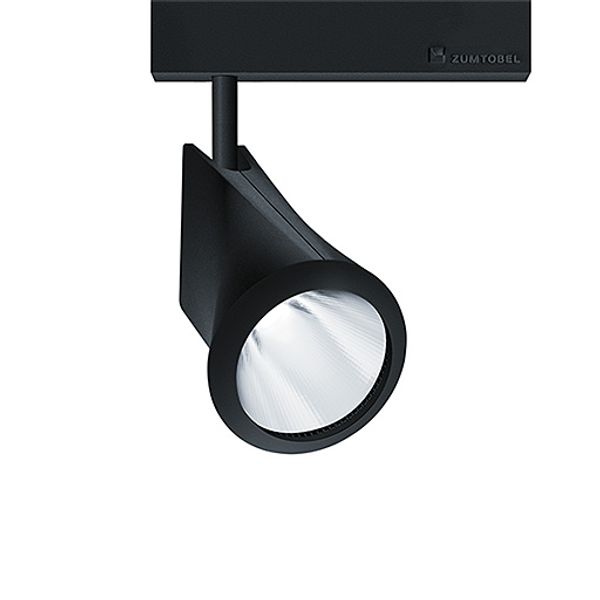

LED spotlight with stabilised colour temperature "Essential+ stableWhite"; optimised for efficient accent lighting in shops and showrooms; sparkling accentuation thanks to precision reflector; compact, timeless spotlight design, specially developed for integrating high-power LED modules; innovative thermal design achieves passive cooling; Luminaire with L3 + DALI adapter for DALI control with control gear in adapter track box (for 3-phase / L3+DALI track), Slave luminaire for DALI control (DALI only); lamp(s): 1/24W LED1900-930; Colour rendering Ra > 90, colour temperature 3000 K (warm white); Luminaire or spotlight with WIDE FLOOD light distribution, with rotationally symmetrical reflector in silver colour; Chromaticity tolerance (initial MacAdam): 2; Luminaire luminous flux: 1900 lm, Luminaire efficacy: 79 lm/W; service life: 50000 h for luminous flux at 85% of initial value; UVA-free and IR-free light; Luminaire input power: 24 W; mains voltage: 220-240V/ 50/60Hz; spotlight can rotate through 360° and tilt through 90°; spotlight housing made of die-cast aluminium, surface finish: microtextured paint in black, matt; front ring fixed to spotlight housing by twist-and-lock mechanism; easy tool-free replacement of reflector and accessories; specular reflector made of aluminium-sputtered polycarbonate with mirrorbrite, iridescent-free finish; specular reflector designed for easy replacement and conversion; dimensions: 160 x 100 x 261 mm; weight: 0.8 kg;
Please note: adapter version suitable for mounting on wall; not suitable for point outlets.
