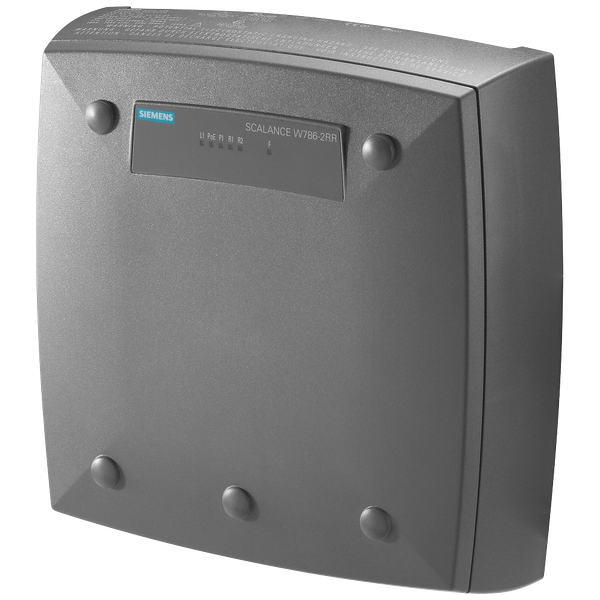

IWLAN AP, 450 Mbps, RJ45, 1x wireless, 3x R-SMA, PLUG slot

In stock: No Vendor stock: No Minimal order quantity: 1 Discontinued
Price (excl. VAT):
1 990,75 € per pcs
This price is valid until 24.12.25
EAN: 4019169240505
MPN: 6GK5786-1FC00-0AA0
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name IWLAN AP, 450 Mbps, RJ45, 1x wireless, 3x R-SMA, PLUG slot
Brand Siemens
Categories Routers and Network Devices
Country of origin DE
Harmonized System Code 8517 6200 00
Max. data transmission rate 450 Mbit/s
Firewall No
Ethernet Yes
Power over Ethernet Yes
VPN-security No
Degree of protection (IP) IP65
Frequency band 2.4 GHz and 5 GHz
Number of ports 10/100/1000 Mbps LAN 1

Packing details

Packing level 1 4019169240505

Other Technical data

Width 0.251 mm
Height 0.251 mm
Depth 0.072 mm
Suitable for wall mounting Yes
Managed Yes
Built-in No
Suitable for 19 inch mounting No
Number of ports 10/100 Mbps LAN 1
Number of ports 1000 Mbps Mini GBIC 0
Connection for external antenna No
Bridge function Yes
Repeater function Yes
Ceiling mounting No
Suitable for DIN rail (top hat rail) mounting No
Flush-mounted installation No
Number of ports 10 Gbps Mini GBIC 0
Pole fastening Yes
Number of ports 100 Mbps POF 0
Socket outlet adapter No
Number of ports 1000 Mbps POF 0
Number of AP's supported 0
Firewall throughput 0 Gbit/s
Number of users 8

Description

product announced for discontinuation; IWLAN Access Point, SCALANCE W786-1 RJ45, 1 radio, 3 R-SMA- antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross 450 Mbps per radio, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, joint block, 110 - 230 V AC via PS791-2AC IP65, -40..+60 °C, plug slot, WPA2/802.11i/e, observe national approvals! cert ID: EAPN-W1-RJ-E3, includes: MPCIE-R1-ABGN-U3, scope of delivery: manuals on CD-ROM, German/English, 1x joint block; for operation outside of USA/Israel SCALANCE W786-1 RJ45 1x wireless, 3x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross 450 Mbps per wireless, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, terminal block, 110 - 230 V AC, IP65, temperature range -40 °C - +60 °C, plug slot, for operation outside the US/Israel. For applications with demanding climatic requirements when installed outdoors and in areas accessible to the public. 1 unit.Very robust Access Point with a built-in wireless interface for usage in demanding climatic requirements, such as when installed outdoors and in areas accessible to the public.Specifically designed for outdoor use: rugged, impact-resistant plastic enclosure, shock and vibration-proof for demanding mechanical requirements. High IP65 degree of protection against dust and water jets as well as extended temperature range from -40 °C to +60 °C. The device is resistant to condensation, UV radiation, and salt spray. Resistant to destruction through connections within the device. 3x3 MIMO technology for stable wireless connections. Optional activation of additional functions (iFeatures) via removable data storage medium (plug).The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
