Isolation amplifier Current and voltage input signal Bipolar current a
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |

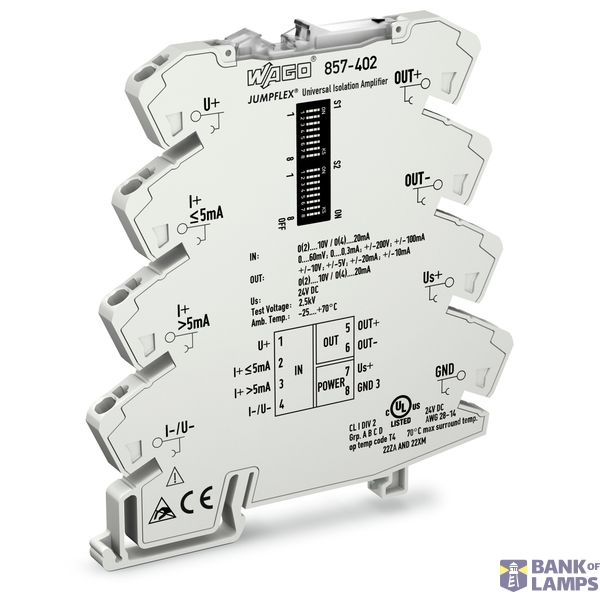

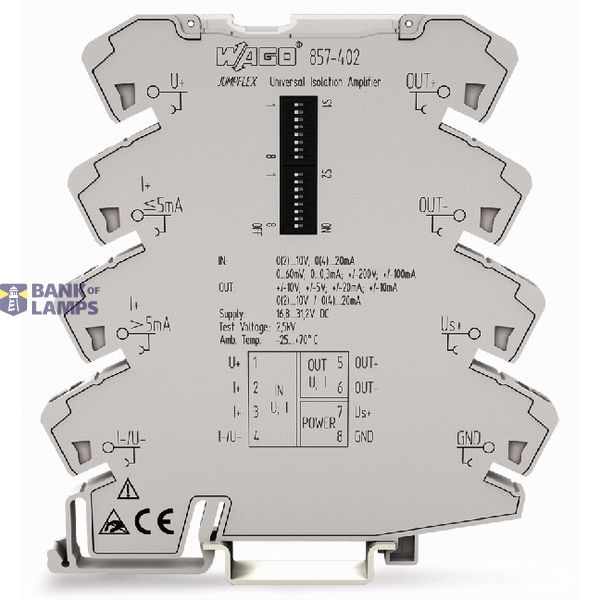

| Manufacture name | Isolation amplifier Current and voltage input signal Bipolar current a |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8543 7090 00 |
| ETIM | EC002653 |
| Number of channels | 1 |
| Type of power supply | Other |
| Degree of protection (IP) | IP20 |
| Rated operation frequency | 100-5000 Hz |
| Rated supply voltage at DC | 16.8-31.2 V |
Packing details
| Packing level 1 | 4050821099772 |
Other Technical data
| Mounting method | Snap mounting support rail |

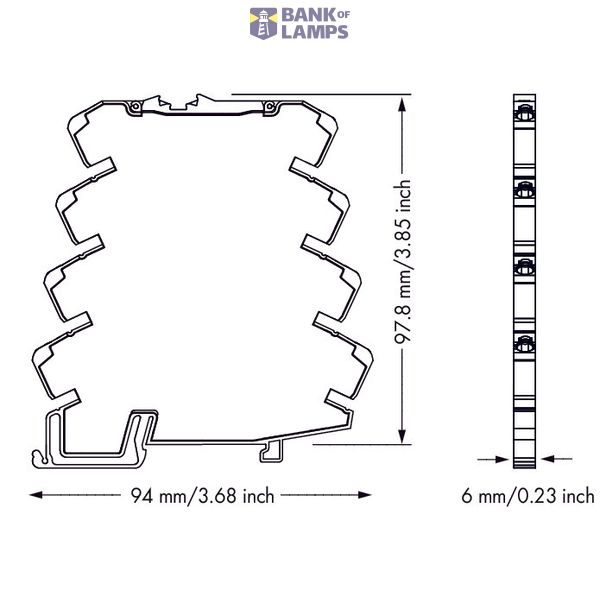

| Width | 6 mm |
| Height | 96 mm |
| Depth | 94 mm |
| Operating temperature | -25-70 °C |
| Type of electric connection | Spring clamp connection |
| Number of output ranges +10 V ... -10 V | 1 |
| Number of output ranges +5 V ... -5 V | 1 |
| Number of output ranges 0 V ... 1 V | 0 |
| Number of output ranges 0 mA ... 10 mA | 1 |
| Number of output ranges 0 V ... 10 V | 1 |
| Number of output ranges 0 mV ... 100 mV | 0 |
| Number of output ranges 0 V ... 2 V | 0 |
| Number of output ranges 0 V ... 2.5 V | 0 |
| Number of output ranges 0 mA ... 20 mA | 1 |
| Number of output ranges 0 V ... 20 V | 0 |
| Number of output ranges 0 mV ... 200 mV | 0 |
| Number of output ranges 0 V ... 24 V | 0 |
| Number of output ranges 0 V ... 30 V | 0 |
| Number of output ranges 0 mV ... 300 mV | 0 |
| Number of output ranges 0 mA ... 5 mA | 0 |
| Number of output ranges 0 V ... 5 V | 1 |
| Number of output ranges 0 mV ... 500 mV | 0 |
| Number of output ranges 0 mV ... 60 mV | 0 |
| Number of output ranges -1 V ... +1 V | 0 |
| Number of output ranges 1 V ... 5 V | 1 |
| Number of output ranges -10 mA ... +10 mA | 0 |
| Number of output ranges -10 V ... +10 V | 0 |
| Number of output ranges 10 V ... 0 V | 0 |
| Number of output ranges 10 V ... 2 V | 0 |
| Number of output ranges -100 mV ... +100 mV | 0 |
| Number of output ranges -2 V ... +2 V | 0 |
| Number of output ranges 2 V ... 10 V | 1 |
| Number of output ranges -2.5 V ... +2.5 V | 0 |
| Number of output ranges -20 mA ... +20 mA | 1 |
| Number of output ranges -20 V ... +20 V | 0 |
| Number of output ranges 20 mA ... 0 mA | 0 |
| Number of output ranges 20 mA ... 4 mA | 0 |
| Number of output ranges -300 mV ... +300 mV | 0 |
| Number of output ranges 4 mA ... 20 mA | 1 |
| Number of output ranges -5 mA ... +5 mA | 0 |
| Number of output ranges -5 V ... +5 V | 0 |
| Number of output ranges 5 V ... 0 V | 0 |
| Number of output ranges 5 V ... 1 V | 0 |
| Number of output ranges -500 mV ... +500 mV | 0 |
| Number of output ranges -60 mV ... +60 mV | 0 |
| Number of input ranges +10 V ... -10 V | 0 |
| Number of input ranges +5 V ... -5 V | 0 |
| Number of input ranges 0 V ... 1 V | 0 |
| Number of input ranges 0 mA ... 10 mA | 1 |
| Number of input ranges 0 V ... 10 V | 1 |
| Number of input ranges 0 mV ... 100 mV | 1 |
| Number of input ranges 0 V ... 2 V | 0 |
| Number of input ranges 0 V ... 2.5 V | 0 |
| Number of input ranges 0 mA ... 20 mA | 1 |
| Number of input ranges 0 V ... 20 V | 0 |
| Number of input ranges 0 mV ... 200 mV | 0 |
| Number of input ranges 0 V ... 24 V | 0 |
| Number of input ranges 0 V ... 30 V | 0 |
| Number of input ranges 0 mV ... 300 mV | 1 |
| Number of input ranges 0 mA ... 5 mA | 1 |
| Number of input ranges 0 V ... 5 V | 1 |
| Number of input ranges 0 mV ... 500 mV | 1 |
| Number of input ranges 0 mV ... 60 mV | 1 |
| Number of input ranges -1 V ... +1 V | 0 |
| Number of input ranges 1 V ... 5 V | 1 |
| Number of input ranges -10 mA ... +10 mA | 1 |
| Number of input ranges -10 V ... +10 V | 1 |
| Number of input ranges 10 V ... 0 V | 0 |
| Number of input ranges 10 V ... 2 V | 0 |
| Number of input ranges -100 mV ... +100 mV | 1 |
| Number of input ranges -2 V ... +2 V | 0 |
| Number of input ranges 2 V ... 10 V | 1 |
| Number of input ranges -2.5 V ... +2.5 V | 0 |
| Number of input ranges -20 mA ... +20 mA | 1 |
| Number of input ranges -20 V ... +20 V | 0 |
| Number of input ranges 20 mA ... 0 mA | 0 |
| Number of input ranges 20 mA ... 4 mA | 0 |
| Number of input ranges -300 mV ... +300 mV | 1 |
| Number of input ranges 4 mA ... 20 mA | 1 |
| Number of input ranges -5 mA ... +5 mA | 1 |
| Number of input ranges -5 V ... +5 V | 0 |
| Number of input ranges 5 V ... 0 V | 0 |
| Number of input ranges 5 V ... 1 V | 0 |
| Number of input ranges -500 mV ... +500 mV | 1 |
| Number of input ranges -60 mV ... +60 mV | 1 |
| Load | 600-1000 Ohm |
| Inherently safe according to EN 60947-5-6 NAMUR | No |
| Galvanic separation between output to output | No |
| Galvanic separation between input and output | Yes |
| Galvanic separation between inputs | Yes |
| Galvanic separation between supply voltage and all other current circuits | Yes |
| Construction type of device | Other |
| Malfunction message output | No |
| Temperature drift | 0.01 %/K |
Description

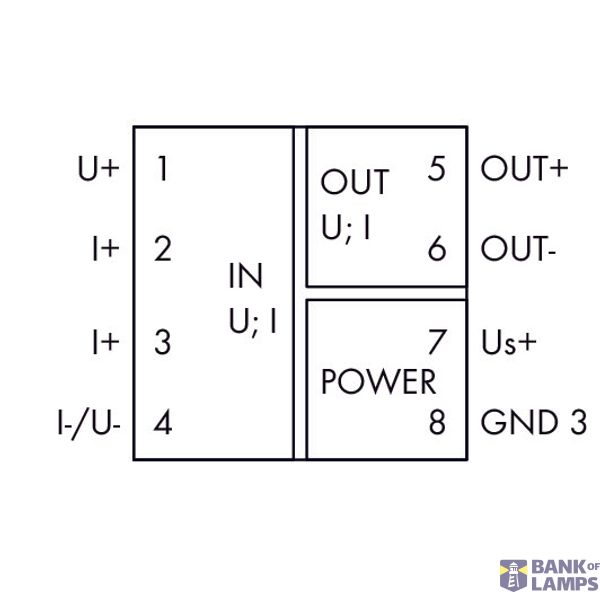

Isolation amplifier Current and voltage input signal Bipolar current and voltage output signal Zero/span adjustment Supply voltage: 24 VDC 6 mm m
