Isolating spark gap for Ex area w. connecting cable Cu 25mm² L 300 mm
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
209,39 €
EAN: 4013364038912
MPN: 923062
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Isolating spark gap for Ex area w. connecting cable Cu 25mm² L 300 mm |
| Brand | Dehn |
| Categories |
Lighting protection
|
| Country of origin | DE |
| Harmonized System Code | 8536 9095 00 |
| Lightning impulse current (10/350 µs) | 2.5 kA |
| Connection | Flange |
| Explosion-tested version | Yes |
| Suitable for connection | Other |
| Nominal discharge surge current (8/20) | 50 kA |
| Material of connection | Stainless steel V2A |
| Degree of protection (IP) | IP54 |
| Rated power-frequency withstand voltage | 300 V |
Packing details
| Packing level 1 | 4013364038912, 4013364038912 |
Downloads
Description

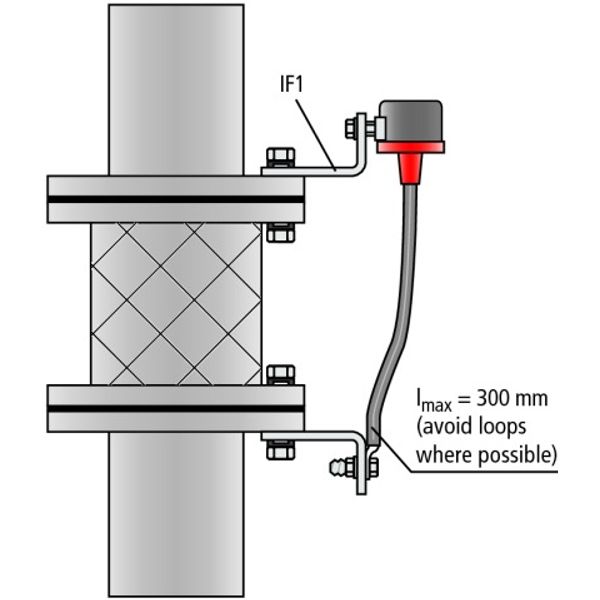

Ex isolating spark gap for indirectly connecting/earthing functionally isolated installation parts under lightning conditions. For safe installation in Ex zone 2 (gases). ATEX-certified isolating spark gap for lightning equipotential bonding according to IEC 62305 in hazardous areas (zone 2) with flexible conductor connection.
