IS XS 12L85-730 NR CL2 WS0.3 M60 GY-S - LED road lighting luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
293,44 €
EAN: 5063016259232
MPN: 96636151
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | IS XS 12L85-730 NR CL2 WS0.3 M60 GY-S - LED road lighting luminaire |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | RS |
| Harmonized System Code | 9405 4239 00 |
| Width | 180 mm |
| Colour rendering index CRI | 70-79 |
| Length | 508 mm |
| Height/depth | 157 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000 K |
| Max. system power | 33 W |
| Rated luminous flux according to IEC 62722-2-1 | 3983 lm |
Packing details
| Packing level 1 | 5063016259232, 5063016259232 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| Colour housing | Grey |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
| Power factor | 0.97 |
Downloads
Description

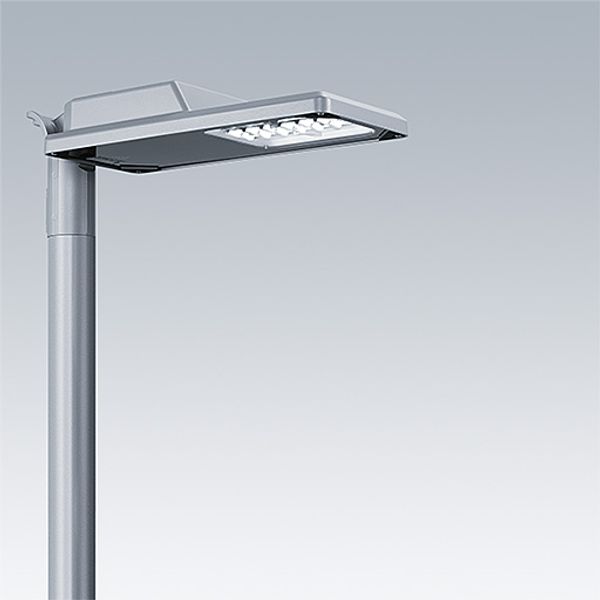

A discrete and flexible road and street lantern with durable high performance. Programmable LED driver, set for fixed output, driving 12 LEDs at 850mA. Body: extra small size, die-cast aluminium (EN AC-44300), powder coated textured Light grey textured (150) - partly painted. Shaft: Light grey textured (150) - partly paintedunpainted. Cover: Extra White glass. Fixings: stainless steel with anti-galvanic treatment. narrow road optic, with Colour Rendering Index min.: 70, Correlated colour temperature*: 3000 Kelvin LEDs supplied. Class II electrical, Impact strength: IK08, IP66, Ta max.: 45°C. Supplied with Ø60mm spigot adaptor which can be fitted for post-top (0°/5°/10° tilt) or side-entry (-20°/-15°/-10°/-5°/0° tilt). Pre-wired with 0.3m, 1.5mm² H07RN-F cable.

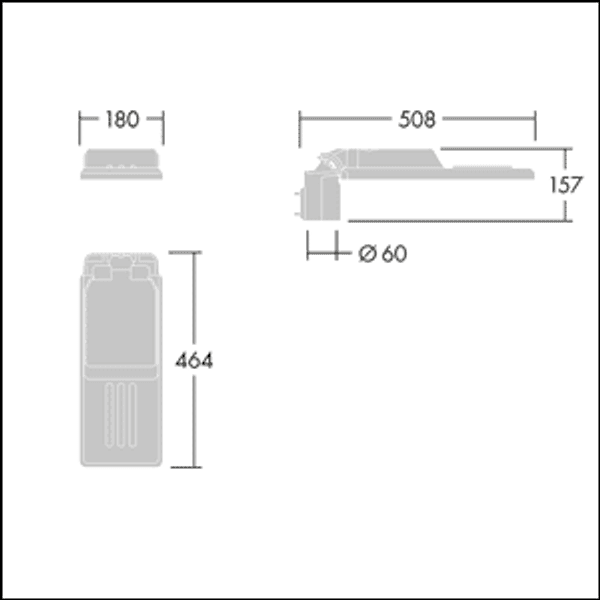

Dimensions: 508 x 180 x 157 mm
Luminaire input power: 32.6 W
Luminaire luminous flux: 4232 lm
Luminaire efficacy: 130 lm/W
Weight: 3.13 kg
Scx: 0.028 m²
