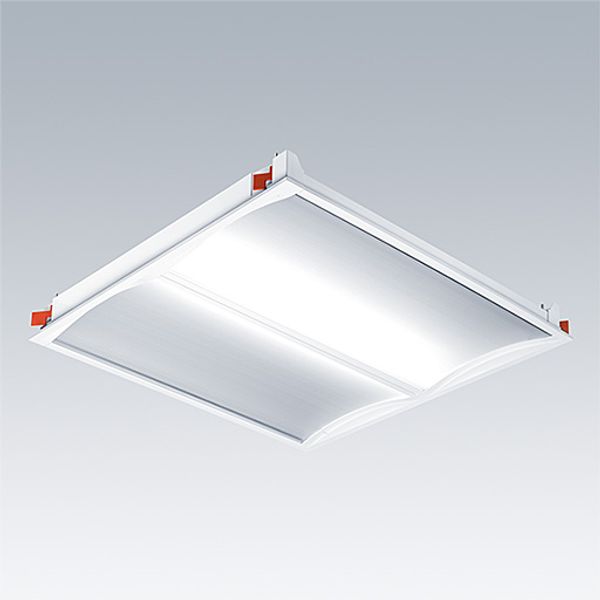

IQ WAVE LED4100-840 HFIX E3TX Q597 MRE - Recessed LED luminaire

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

663,08 €

This price is valid until 24.12.25

EAN: 5037319345121

MPN: 92900294

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	IQ WAVE LED4100-840 HFIX E3TX Q597 MRE - Recessed LED luminaire
Brand	Thorn
Categories	Wall and ceiling luminaires Ceiling mounting lamps Built-in mounting lamps
Country of origin	GB
Width	597 mm
Colour housing	White
Colour rendering index CRI	80-89
Length	597 mm
Height/depth	97 mm
Lamp type	LED not exchangeable
Impact strength	IK03
Nominal voltage	220-240 V
Degree of protection (IP)	IP20
Colour temperature	4000 K
Max. system power	40 W
Rated luminous flux according to IEC 62722-2-1	4250 lm

Packing details

Packing level 1

5037319345121

Other Technical data

Protection class	I
Lamp holder	Other
Voltage type	AC
With movement sensor	No
Type of grid	None
Type of control gear	LED operating device current-controlled
Built-in width	0 mm
With light sensor	No
Suitable for suspended mounting	No
Housing material	Steel
Built-in length	0 mm
Suitable for light line configuration	No
Suitable for emergency lighting	Yes
Light outlet	Direct
Light sharing	Symmetric
Material cover	Plastic, transparent
Emergency power supply integrated	No
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Covering of the luminaire with thermally insulating material possible	No
Suitable for number of lamps	1
Suitable for built-in mounting	Yes
With control gear	Yes
Suitable for workplace according to EN 12464-1	Yes
Suitable for surface mounting	No
Colour of light	White
With air slots	No
Constant light output (CLO)	No
IFTTT support available	No
Rated life time L70/B50 at 25 °C	100000 h
Colour consistency (McAdam ellipse)	SDCM3
Rated ambient temperature according to IEC62722-2-1	0-25 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	Yes
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	Yes
No dim function	No
Dimming DSI	Yes
Unified Glare Ratio (UGR)	18
Operation by Bluetooth	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	18
Max. number of luminaires per miniature circuit breaker B16	11
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)	90 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	90 %
Dimming DALI-2	No
Flickering value Pst LM	1
Colour temperature adjustable	No
Luminous flux adjustable	Continuously variable
Exchangeable control gear	Yes
Suitable for ceiling mounting	Yes
Built-in height/depth	92 mm
Power factor	0.92

Downloads

Declaration DOC CE (Declaration of conformity CE)

Description

Recessed modular, direct LED luminaire. Electronic, DALI dimmable control gear with 3 hour, Self/DALI Addressable test, emergency lighting circuit. Class I electrical, IP44_IP20, IK03. Body: highly reflective steel. Frame and end caps: polycarbonate. Diffuser: polycarbonate with aluminium heatsink. Gear tray: powder coated white steel. Suitable for lay in or pull up (with accessory) installation. Complete with 4000K LED_x000D_ _x000D_ Dimensions: 597 x 597 x 97 mm_x000D_ Luminaire input power: 40 W_x000D_ Luminaire luminous flux: 4250 lm_x000D_ Luminaire efficacy: 106 lm/W_x000D_ Weight: 4.4 kg
