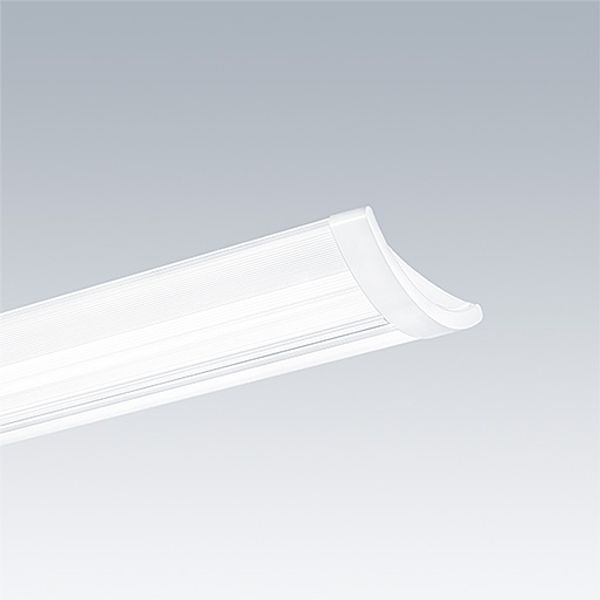

IQ SURF S LED4250-840 HFIX - Surface mounted LED luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 5037319361855
MPN: 96628943
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | IQ SURF S LED4250-840 HFIX - Surface mounted LED luminaire |
| Brand | Thorn |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Country of origin | GB |
| Width | 210 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 1140 mm |
| Height/depth | 70 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Colour temperature | 4000 K |
| Max. system power | 40 W |
| Rated luminous flux according to IEC 62722-2-1 | 4250 lm |
Packing details
| Packing level 1 | 5037319361855 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Plastic |
| Built-in length | 0 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Total harmonic distortion | 9 |
| Rated ambient temperature according to IEC62722-2-1 | -20-25 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| No dim function | No |
| Dimming DSI | Yes |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Max. number of luminaires per miniature circuit breaker B16 | 22 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 90 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0.92 |
Downloads
Description
A lightweight, Surface mounted, LED luminaire with MV Tech optic. Electronic, DALI dimmable control gear. Class I electrical, IP40, IK05. Body, diffuser, frame and endcaps: polycarbonate finished in white (close to RAL9016). Gear tray: pre-coated white steel. Complete with 4000K LED_x000D_
_x000D_
Dimensions: 1140 x 210 x 70 mm_x000D_
Luminaire input power: 40 W_x000D_
Luminaire luminous flux: 4250 lm_x000D_
Luminaire efficacy: 106 lm/W_x000D_
weight: 4.1 kg
