IP gateway for Safe and Touch with GFVS
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | IP gateway for Safe and Touch with GFVS |
| Brand | ELTAKO |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8526 9200 00 |
| ETIM | EC001099 |
| Mounting method | Other |
| Model | Ethernet interface |
| Bus system KNX | No |
| Bus system Powernet | No |
| Other bus systems | None |
Packing details
| Packing level 1 | 4010312319130, 4010312319130 |
Other Technical data
| Voltage type | DC |
| Power consumption | 15 W |
| Bus system radio frequent | Yes |
| Bus system LON | No |
| Demounting protection | No |
| Radio interface | Yes |
| IR interface | No |
| Protocol | TCP/IP |
| Provider dependent | No |
| Updateable | No |
| Visualization | No |
| Web-Server | No |
| Operating voltage | 5 V |
| Degree of protection (IP) | IP20 |
| With LED indication | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | Yes |
Downloads
Description

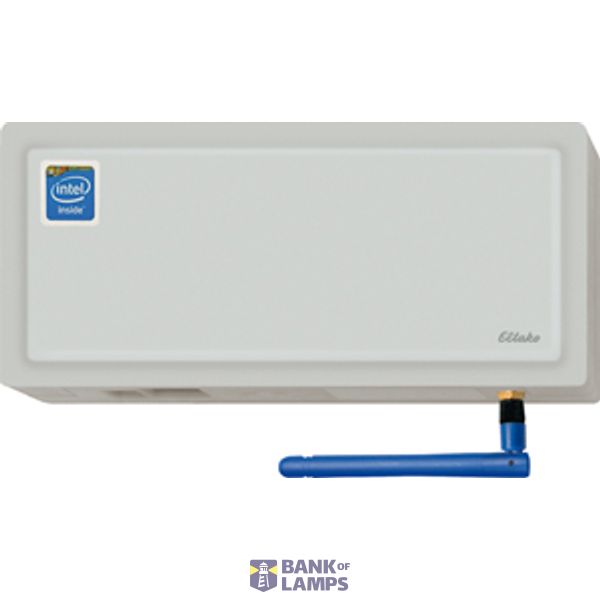

Gateway with ETHERNET interface to run with a Smart Home Central Unit Safe or Touch together with the Wireless Building Visualisation and Control Software GFVS. The EAP165 receives all wireless telegrams from the Eltako Wireless Building system from a building surface area of approx. 200 to 400m2 and forwards them via ETHERNET to the GFVS software. It also sends wireless telegrams from the software to the Eltako Wireless Building. Scope of supply: EAP165, wall adapter power supply, replaceable EnOcean antenna, ethernet cable 2m RJ45, quick start guide. Specifications: Processor: Intel X1021, memory: 1 GB DDR3 RAM + 4 GB eMMC, LAN: 1x 10/100 Mbit Ethernet, integrated EnOcean-868MHz wireless module (TCM310) ESP3, power supply 5V, plastic housing gray RAL 7035, dimensions: 165x70x35mm with slots for wall mounting and feet to put down, weight: 175 grams. Configuration is by means of the Eltako IP Configurator which is obtainable from https://www.eltako.conm/de/software.html
