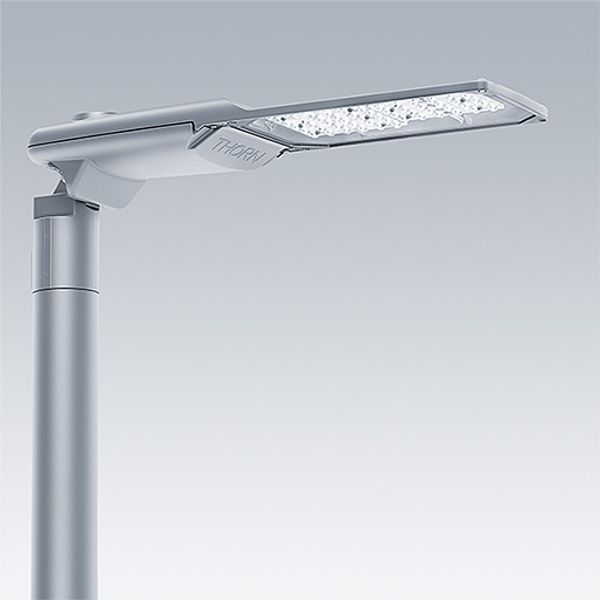

IP 60L70-740 NR BP 3550 CL2 M60 GY-S - LED road lighting luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
810,66 €
EAN: 5063016259645
MPN: 96636182
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | IP 60L70-740 NR BP 3550 CL2 M60 GY-S - LED road lighting luminaire |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | GB |
| Harmonized System Code | 9405 1190 00 |
| Width | 224 mm |
| Colour rendering index CRI | 70-79 |
| Length | 718 mm |
| Height/depth | 114 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK09 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 125.2 W |
| Rated luminous flux according to IEC 62722-2-1 | 19367 lm |
Packing details
| Packing level 1 | 5063016259645, 5063016259645 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| Colour housing | Grey |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
| Power factor | 0.97 |
Downloads
Description
A state of the art LED road lighting lantern (medium) with 60 LEDs driven at 700mA with Narrow Road optic. Programmable LED driver. Class II electrical, IP66, IK09. Housing: die-cast aluminium (EN AC-44300), powder coated textured light grey 150 (close to RAL9006). Spigot: die-cast aluminium (EN AC-44300), unpainted. Enclosure: 5mm thick glass. Fixings: spring steel. Supplied with Ø60mm spigot adaptor which can be fitted for post-top (0°/5°/10°/15°/20° tilt) or side-entry (-15°/-10°/-5°/0°/5°/10°/15° tilt). Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. Complete with 4000K LED. Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.
Dimensions: 718 x 224 x 114 mm
Luminaire input power: 125.2 W
Luminaire luminous flux: 19367 lm
Luminaire efficacy: 155 lm/W
Weight: 6.99 kg
Scx: 0.066 m²
