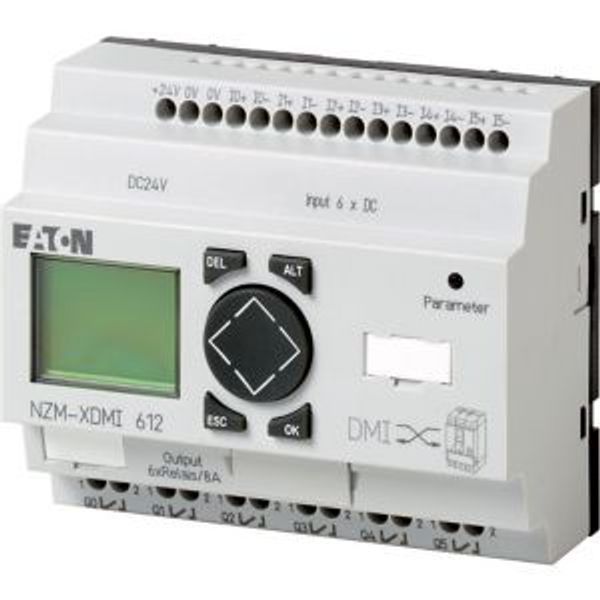

NZM-XDMI612 Interface, data Management, for NZM2/3/4
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
317,20 €
EAN: 4015082602178
MPN: 260217
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | NZM-XDMI612 Interface, data Management, for NZM2/3/4 |
| Brand | EATON |
| Categories |
Industrial Fieldbus Modules
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Width | 107.5 mm |
| Height | 90 mm |
| Depth | 53 mm |
| Voltage type of supply voltage | DC |
| Rail mounting possible | Yes |
| Degree of protection (IP) | IP20 |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| IO link master | No |
| Supply voltage AC 50 Hz | 0 V |
| Supply voltage AC 60 Hz | 0 V |
| Supply voltage DC | 24 V |
| Radio standard LTE | No |
Packing details
| Packing level 1 | 4015082602178 |
Other Technical data
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| With potential separation | No |
| Explosion safety category for gas | None |
| Explosion safety category for dust | Other |
| Fieldbus connection over separate bus coupler possible | No |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Front built-in possible | Yes |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| Performance level according to EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Radio standard eGPRS | No |
| SIL according to IEC 61508 | None |
Description
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: inclusive NZM-XDMI-CAB connection cable between NZM and DMI (length: 2 m). Query from diagnostics and operational data. Recording of current values, motor starter function, parameter assignment. Control of the circuit-breakers with electronic trip block. Comprehensive remote diagnostic options and remote access via field bus in combination with a fieldbus connection. NZM-XDMI-DPV1 remote parameter definition . Only for use in combination with circuit-breakers with electronic releases. Can be used for: NZM2, NZM2-4, NZM3, NZM3-4, NZM4, NZM4-4
