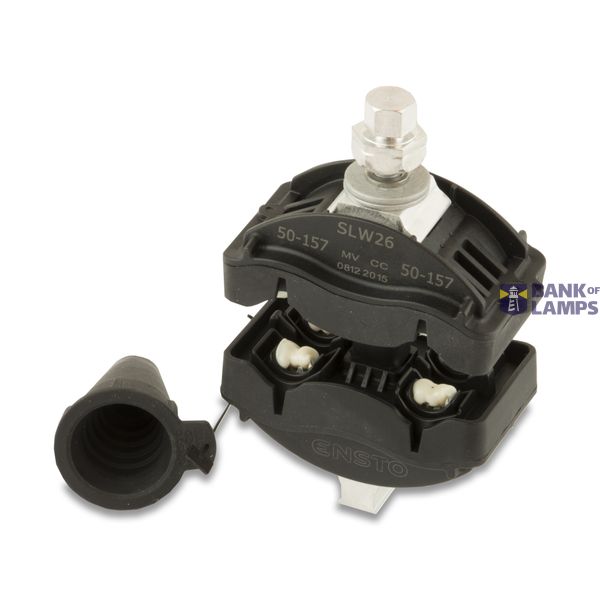

Insulation piercing connector 50-157 mm�
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Insulation piercing connector 50-157 mm� |
| Brand | Ensto |
| ETIM | EC001062 |
| Surface protection | Bare |
| Nominal cross section main conductor, SM | 50-157 mm² |
| Nominal cross section branch conductor, SM/RM | 50-157 mm² |
| Nominal cross section branch conductor, SE/RE | 50-157 mm² |
| Material main conductor | Aluminium |
| Material branch conductor | Aluminium |
Packing details
| Packing level 1 | 6438100309053 |
| Packing level 2 | 6438100309053 |
| Packing level 3 | 6438100309053 |
Other Technical data
| Type of connection | Insulation piercing connector IPC |
| Terminal insulated | Yes |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
Description
The watertight shear head bolt connector is for Medium Voltage Covered Conductors (MV CC) non-tension aluminium to aluminium connections without peeling the insulation. The nominal insulation thickness of the conductor can be between 2.3-4.0 mm.
