Dehn

Insulating stick 25kV 16.7Hz with plug-in coupling D 30mm L 900mm

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Insulating stick 25kV 16.7Hz with plug-in coupling D 30mm L 900mm
Brand Dehn
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 9603 9099 00
ETIM EC002786
Type of device Insulating rod
Nominal voltage 1-25 kV

Packing details

Packing level 1 4013364139909, 4013364139909

Other Technical data

Diameter 30 mm
Usable at precipitation Yes
Plug connector, secured against rotation Yes
Total length 920 mm
Suitable for live-line work Yes
Extendable handle area Yes
Suitable for railway systems Yes

Downloads

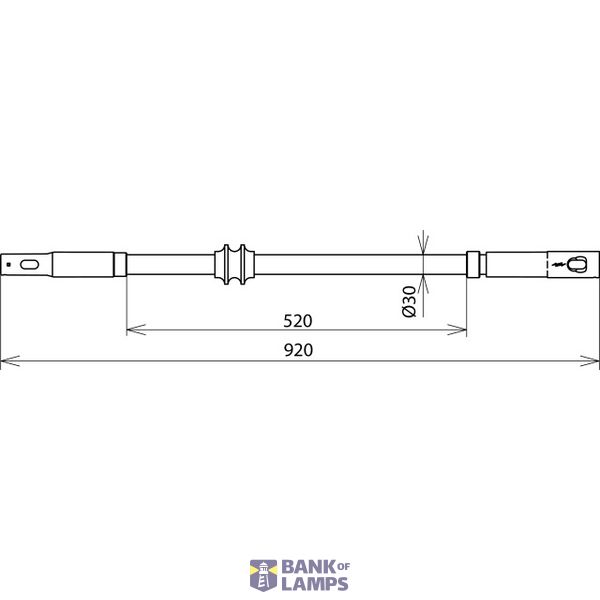

Product data sheet Dimensioned drawing

Description

Insulating stick with plug-in coupling at both ends for attaching extensions, operating heads or adapters.
