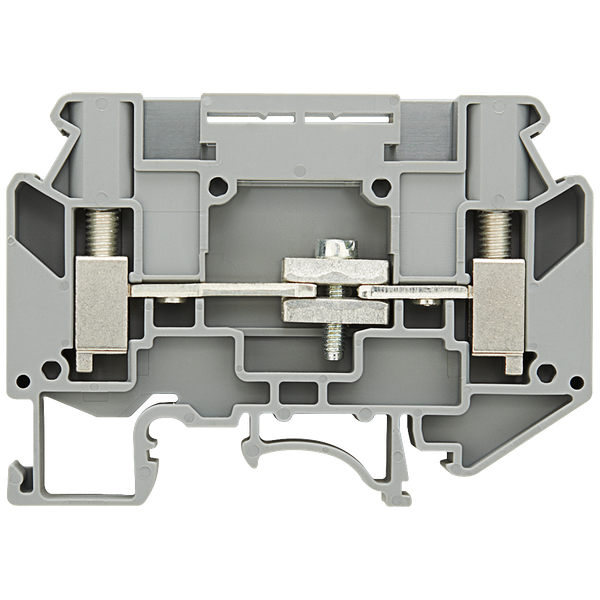

Terminal, screw terminal, measuring transformer terminal, 6 mm², gray Terminal block connection technology for various
In stock: No
Vendor stock: No
Minimal order quantity: 50
Price (excl. VAT):
2,85 €
per pcs
Subtotal: 142,50 €
MOQ: 50
EAN: 4001869500249
MPN: 8WH1000-7AH00
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Terminal, screw terminal, measuring transformer terminal, 6 mm², gray Terminal block connection technology for various |
| Brand | Siemens |
| Categories |
DIN Rail Terminal Blocks
|
| Country of origin | DE |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 500 V |
| Type of electrical connection 1 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Internally connected stages | No |
| Connectable conductor cross section solid-core | 0.5-10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-6 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-6 mm² |
| Connectable conductor cross section multi-wired | 2.5 mm² |
| Rated current In | 41 A |
Packing details
| Packing level 1 | 4001869500249 |
| Packing level 2 | 4001869500249 |
Other Technical data
| Colour | Grey |
| Width | 8.149999999 mm |
| Height | 66.5 mm |
| Depth | 48 mm |
| Operating temperature | -105--60 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| With integrated test socket | No |
| Material insulation body | Other |
Description
Terminal, screw terminal, measuring transformer terminal, 6 mm², gray
