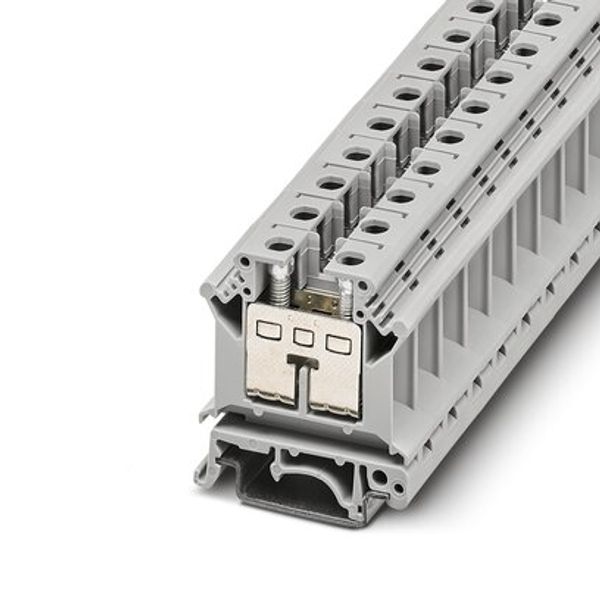

UIK 16 SLS - Installation terminal block

Order only

Price (excl. VAT):

7,15 €

This price is valid until 24.12.25

EAN: 4055626913094

MPN: 1093660

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	UIK 16 SLS - Installation terminal block
Brand	Phoenix Contact
Categories	DIN Rail Terminal Blocks
Country of origin	DE
Harmonized System Code	8536 9010 00
Mounting method	Other
Width	12.05 mm
Height	42.522 mm
Depth	45.9 mm
Rated voltage	400 V
Inflammability class of insulation material according to with UL94	V2
Closing plate required	Yes
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of potentials	1
Basic colour	Grey
PE-function	No
With N-disconnect slide	No
N function possible	No
Connectable conductor cross section solid-core	2.5-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve	1.5-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	4-16 mm²
Connectable conductor cross section multi-wired	4-16 mm²
Material insulation body	Other
Rated current In	76 A

Packing details

Packing level 1

4055626913094

Description

Installation terminal block, with six-lobe screw, nom. voltage: 400 V, nominal current: 76 A, Screw connection, Rated cross section: 16 mm², cross section: 2.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray
