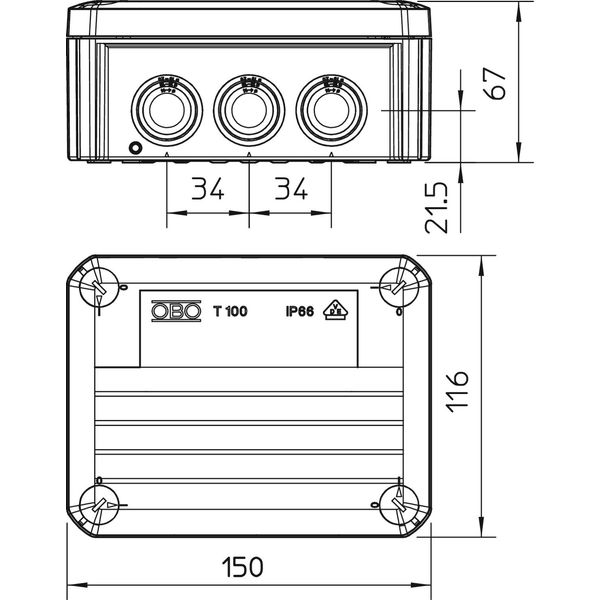

T 100 RW Junction box with entries 150x116x67
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
6,13 €
per pcs
EAN: 4012195286677
MPN: 2007533
Box: 1
Pallet: 480
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | T 100 RW Junction box with entries 150x116x67 |
| Brand | OBO Bettermann |
| Categories |
Surface Mounted Junction Boxes
|
| Country of origin | DE |
| Harmonized System Code | 3926 9097 00 |
| Halogen free | Yes |
| Equipped with | None |
| Rated insulation voltage Ui | 500 V |
| Sealable | Yes |
| Max. conductor cross section | 10 mm² |
| Weatherproof | No |
| Degree of protection (IP) | IP66 |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 4012195387107 |
| Packing level 2 | 4012195387114 |
| Packing level 3 | 4012196892808 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | White |
| Width | 116 mm |
| Depth | 67 mm |
| Shape | Rectangular |
| Surface protection | Untreated |
| Diameter | 0 mm |
| Length | 150 mm |
| Circuit integrity | None |
| Operating temperature | -5-60 °C |
| Material | Plastic |
| Number of inlets | 10 |
| Explosion-tested version | No |
| Cover attachment | Screwed |
| With screening | No |
| For Ex-zone gas | None |
| Tackable | Yes |
| Type of housing feed-through | Trimmable step membrane |
| For Ex-Zone dust | None |
| Castable | No |
| With casting compound | No |
| Transparent cover | No |
| Mounting in the soil | No |
| Mounting under water | No |
Description
Kabeļu nozarkārba kabeļu un vadu savienošanai iekštelpās un aizsargātās ārtelpās. Taisnstūra forma ar iespraužamu blīvi sānos un izsitamiem ievadiem grīdā. Piemērota montāžai pie sienas/griestiem un montāžai uz montāžas plāksnēm. Ar iekšējās stiprināšanas iespēju un montāžu ar stūra vākiem. Vāks ar ātro noslēgu, noplombējams. Ražots no materiāliem, kas nesatur halogēnogļūdeņražus.
Kabeļu nozarkārba atbilstoši DIN EN 60670. Ugunsizturīga atbilstoši DIN EN 60695-2-11, pārbaudes temperatūra 650°C. Triecienizturība IK07 atbilstoši DIN EN 50102.
