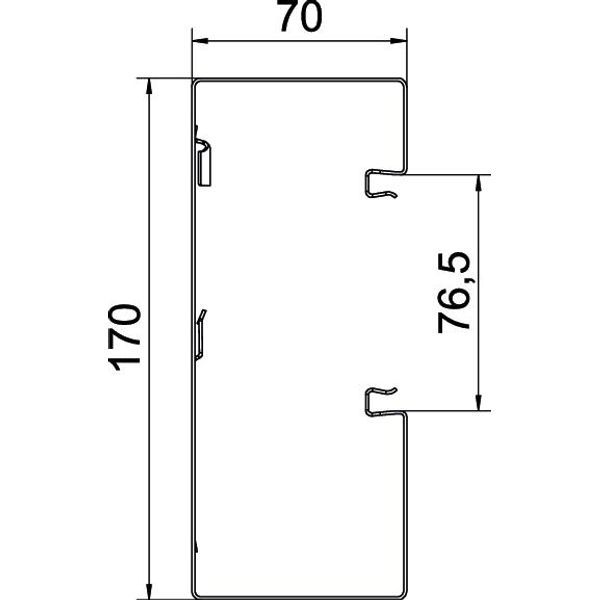

GS-A70170RW Device installation trunking asymmetrical 70x170x2000
Order only
Minimal order quantity: 8
Price (excl. VAT):
38,93 €
per m
Subtotal: 311,44 €
MOQ: 8
EAN: 4012195662945
MPN: 6277800
Package: 2
Box: 8
Pallet: 64
Estimate delivery time to our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | GS-A70170RW Device installation trunking asymmetrical 70x170x2000 |
| Brand | OBO Bettermann |
| Categories |
Wall-Mounted Cable Ducts
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 7308 9059 00 |
| Colour | White |
| Width | 170 mm |
| Halogen free | Yes |
| Depth | 70 mm |
| RAL-number | 9010 |
| Surface protection | Untreated |
| Material quality | Other |
| Length | 2000 mm |
| Operating temperature | -25-60 °C |
| Material | Steel |
| Mounting method cover | Inner lying |
| Impact strength | IK10 |
| Number of covers | 1 |
| Number of plug-in partitions | 1 |
| Mounting perforation in bottom | Yes |
| With cable fixing clip | No |
| With duct connector | No |
| Useful cross section | 10010 mm² |
| Cover width 1 | 76.5 mm |
| Cover width 2 | 0 mm |
| Cover width 3 | 0 mm |
| With protective foil | Yes |
| Symmetric | No |
| Degree of protection (IP) | IP30 |
| Construction rear wall (inner side) | With cam clamps |
| Construction type rectangular | Yes |
| Covers supplied with the product | No |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4012197296346 |
| Packing level 2 | 4012195749875 |
| Packing level 3 | 4012197143237 |
Description
GS ierīču montāžas kanāls, paredzēts montāžai tieši pie sienas vai stiprinājuma konsolēm. GS ierīču montāžas kanāls aprīkots ar savienojumu automātiski izveidojošiem stiprinājuma uzliktņiem, kas ļauj iestiprināt no tērauda loksnes izgatavotu starpsienu. Potenciālu izlīdzināšana starp kanāla apakšējām daļām notiek ar savienojuma starpniecību. Aizsardzības funkciju un potenciālu izlīdzināšanu starp augšējo un apakšējo daļu nodrošina patentēts, automātiski savienojumu izveidojošs kanāla vāks. Sistēmas atveres patiesais izmērs ir 76,5 mm. Augšējā daļa jāpasūta atsevišķi.
