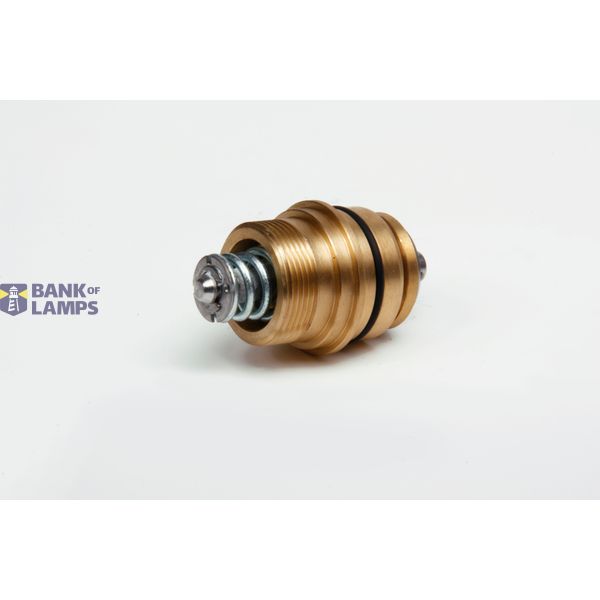

Insert PN25 25/8 32/10 VG-retour VQM
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Insert PN25 25/8 32/10 VG-return VQM |
| Brand | Danfoss |
| Country of origin* | DK |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8481 9000 00 |
| ETIM | EC011310 |
| Material quality | Bronze (Rg 5) |
| Article compression class | PN 16 |
| Flange compression class | PN 16 |
| Connections | External thread |
| Nominal diameter | DN 15 |
Packing details
| Packing level 1 | 5702421553220 |
Other Technical data
| Max. medium temperature (continuous) | 120 °C |
| Min. medium temperature (continuous) | 2 °C |
| Outer pipe diameter all connections | 15 mm |
| With coupling connection 3 | Yes |
| Length of connection 1 | 0 mm |
| Length of connection 2 | 0 mm |
| Working length connection 1 | 0 mm |
| Working length connection 2 | 0 mm |
| Length of connection 3 | 0 mm |
| Working length connection 3 | 0 mm |
| Shaft height | 0 mm |
| With T-piece for 4-way connection | No |
| Stroke length | 2 mm |
| With coupling connection 1 | Yes |
| With coupling connection 2 | Yes |
| Housing material | Bronze |
| Kvs value | 2.5 |
| Max. pressure difference in opened position | 0.6 bar |
| Leakage loss of Kvs value | 0.05 % |
| Control ratio (Svo) | 0.063 % |
| KVS value for bypass | 0 |
| Leakage loss of KVS value for bypass | 0.1 % |
| Installation method, distributive | No |
