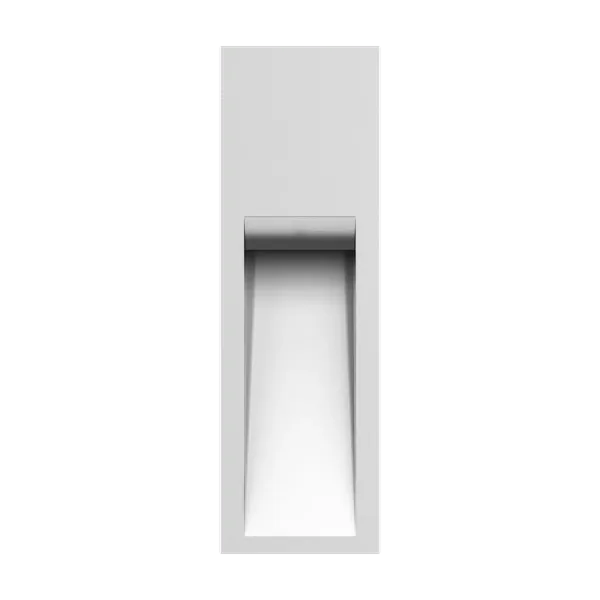

INSERT+2 V 7 A/EW 830 WIT DALI
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
182,10 €
EAN: 8018367734126
MPN: 3118199
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | INSERT+2 V 7 A/EW 830 WIT DALI |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
Built-in mounting lamps |
| Country of origin | IT |
| Harmonized System Code | 9405 1190 00 |

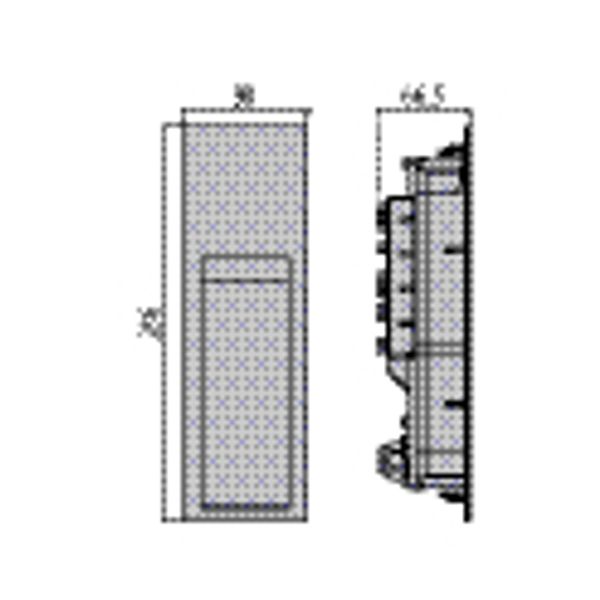

| Width | 66.5 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 90 mm |
| Height/depth | 286 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK07 |
| Nominal voltage | 220 V |

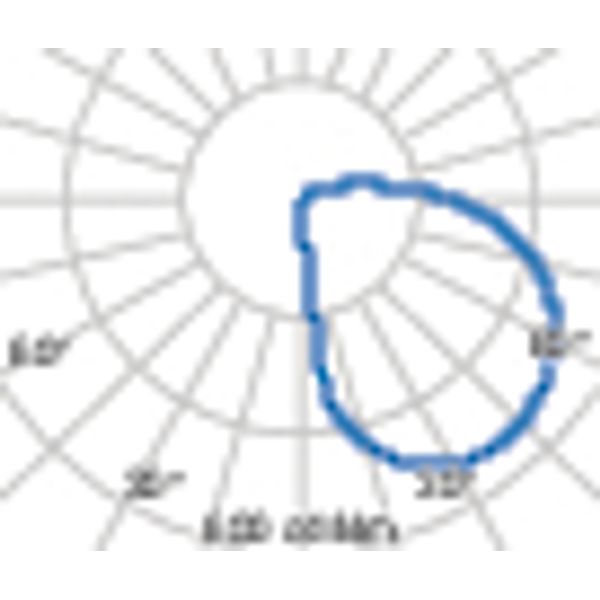

| Beam angle | Wide beam 41-80° |
| Colour temperature | 3000 K |
| Max. system power | 9 W |
Packing details
| Packing level 1 | 8018367734126, 8018367734126 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Other |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 9 W |
| Type of grid | Matt |
| Type of control gear | Electronic ballast |
| Built-in width | 100 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Built-in length | 85 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Other |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 21 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Nominal current | 350 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -20 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Built-in height/depth | 280 mm |
| Surface protection housing | Powder coating |
| Power factor | 0.9 |
Downloads
Description
Wandinbouwarmaturen voor algemene- en orientatieverlichting voor binnen en buiten bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak ISO 9227/12944 - ISO 9223 (C5). Afscherming van vlak van binnen gesatineerd glas. Pakking in slijtvast siliconen. Veren uit roestvrij staal voor snelle aansluiting aan inbouwdoos. De modellen zijn ontwikkeld zonder zichtbare schroeven. Inbouwdoos separaat te bestellen. Om de installatie van de inbouwdoos te vereenvoudigen is de inbouwdoos voorzien van een uitneembare deksel waarop zich twee waterpassen bevinden. Als accessoires leverbaar, kabelconnectoren voor doorvoerbedrading. De connectoren zijn geschikt voor kabels van Ø 7 - Ø 10,5 mm en van Ø 14 - Ø 17 mm.
Accessories
In stock: No
Performance in Lighting
INSERT+2 FLUSH-MOUNTED BOX
12,45 €
EAN: 8018367632620
MPN: 310490
Package: 1
