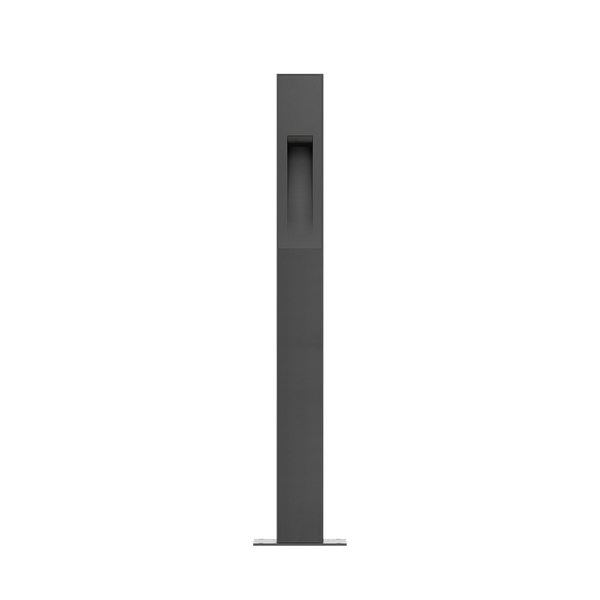

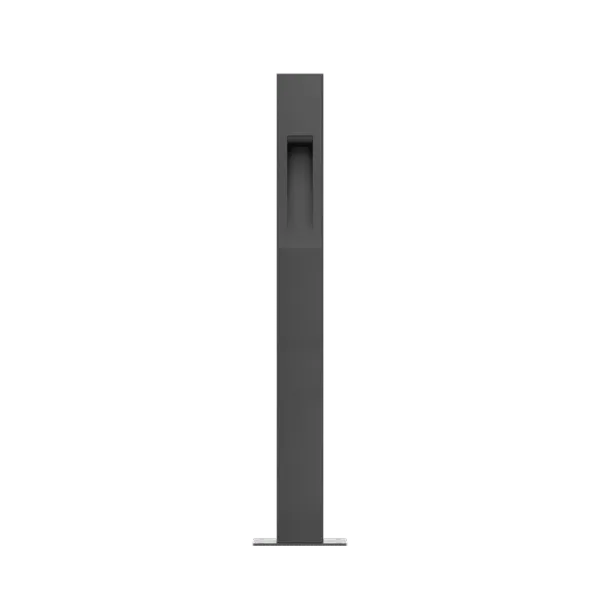

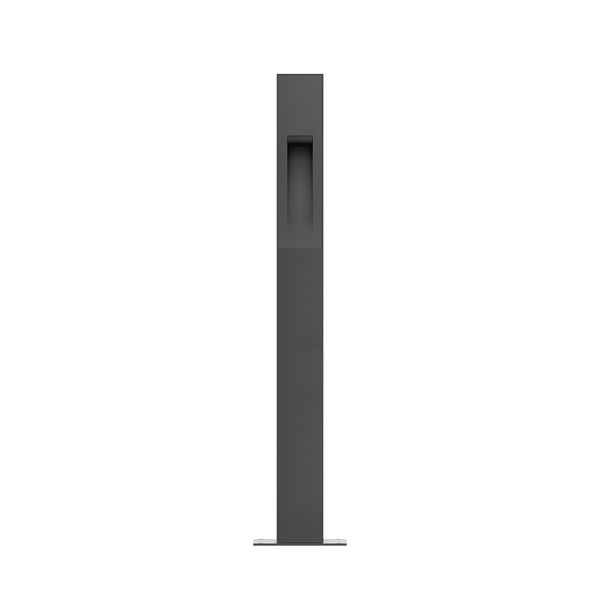

INSERT+1 V POST 600 3.5 A/EW 830 AN96

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

223,48 €

This price is valid until 24.12.25

EAN: 8018367734768

MPN: 3118474

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	INSERT+1 V POST 600 3.5 A/EW 830 AN96
Brand	Performance in Lighting
Categories	Street and park luminaires
Country of origin	IT
Harmonized System Code	9405 4239 00

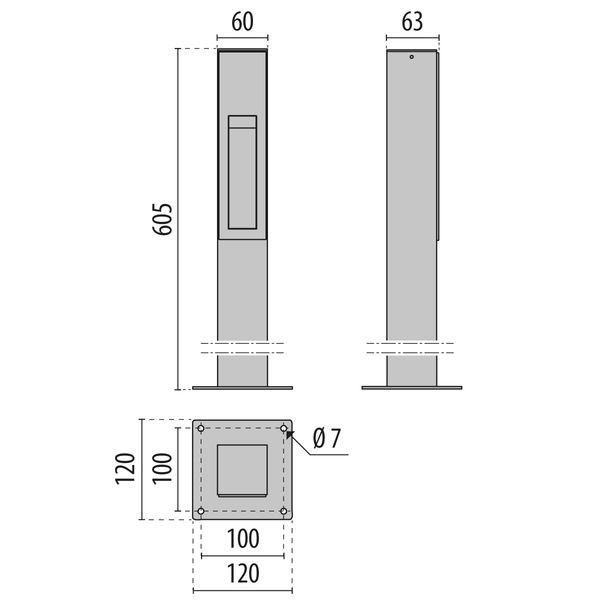

Width	120 mm
Colour rendering index CRI	80-89
Length	120 mm
Height/depth	605 mm
Lamp type	LED exchangeable
Impact strength	IK08
Nominal voltage	220 V
Degree of protection (IP)	IP65

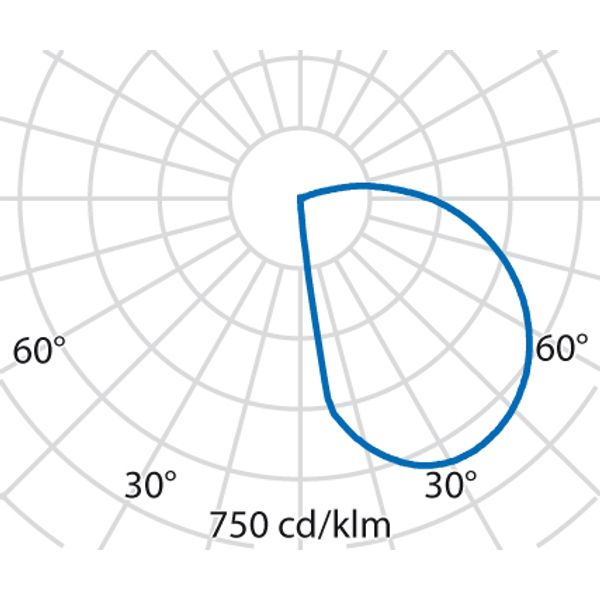

Beam angle	Extreme wide beam >80°
Colour temperature	3000 K
Max. system power	4 W

Packing details

Packing level 1

8018367734768, 8018367734768

Other Technical data

Protection class	I
Lamp holder	Other
Conductor cross section	1.5 mm²
With base plate	Yes
Connection type	Other
Colour housing	Anthracite
Surface protection	Powder coating
Voltage type	AC
With movement sensor	No
Suitable for lamp power	4 W
Type of control gear	Electronic ballast
With light sensor	No
Number of poles	3
Housing material	Aluminium
Type of luminaire	Bollard luminaire
Light outlet	Direct
Light sharing	Asymmetric
Material cover	Other
With light source	Yes
Suitable for number of lamps	7
With control gear	Yes
Nominal current	13
Colour of light	White
IFTTT support available	No
Type of wiring	Ending
Light distributor	Diffuser lens/optic/panel
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	256
Max. number of luminaires per miniature circuit breaker B16	160
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	No
Housing material quality	Other
Power factor	0.7

Downloads

Product data sheet Mounting instruction

Description

Mastarmatuur voor algemene verlichting buiten bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak ISO 9227/12944 - ISO 9223 (C5). Afscherming van vlak van binnen gesatineerd glas. Pakking in slijtvast siliconen. Mast van gelakt geëxtrudeerd aluminium met flens. LED module voor netspanning 220-240V 50/60Hz beschermd tegen overbelasting tot 500 V. Snelle installatie met bevestigingsveren. De modellen zijn ontwikkeld zonder zichtbare schroeven.
