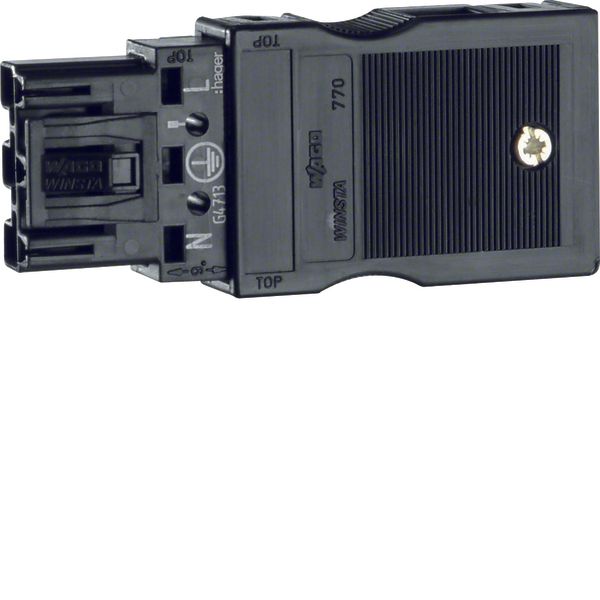

Input connector, 3 poles
Order only
Price (excl. VAT):
3,66 €
per pcs
EAN: 4012740849562
MPN: G4703
Package: 1
Box: 25
Pallet: 6400
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Input connector, 3 poles |
| Brand | Hager |
| Categories |
Plug-in Connectors
|
| Harmonized System Code | 8536 9010 00 |
| Model | Bus |
| Connection type | Spring clamp connection |
| Rated current | 32 A |
| Rated voltage | 250 V |
| Number of poles | 2 |
| Length | 76 mm |
| Degree of protection (IP) | IP20 |
| Pole codification | L, N, PE |
Packing details
| Packing level 1 | 4012740849562 |
| Packing level 2 | 4012740849562 |
| Packing level 3 | 4012740849562 |
| Packing level 4 | 4012740849562 |
Other Technical data
| Width | 34.6 mm |
| Halogen free | Yes |
| Height | 15 mm |
| With strain relief | Yes |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Untreated |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Continuity resistor | 1 mOhm |
| Contact material | Other |
| Number of connections per pole | 2 |
| Connection cross section (fine-strand) | 0.5-4 mm² |
| Connection cross section (solid-core) | 0.5-4 mm² |
| Max. continuous temperature resistance contact part | 85 °C |
| Max. continuous temperature resistance strain relief | 105 °C |
Description
Input connector, 3 poles
Suitable for
74,02 €
per pcs
EAN: 4012740850940
MPN: GS11003020
Package: 1
Box: 10
Pallet: 1440
N/A
EAN: 4012740850964
MPN: GS11009010
Package: 1
Box: 10
Pallet: 1440
73,39 €
per pcs
EAN: 4012740850971
MPN: GS11009011
Package: 1
Box: 10
Pallet: 1440
78,48 €
per pcs
EAN: 4012740850995
MPN: GS11013020
Package: 1
Box: 10
Pallet: 780
N/A
EAN: 4012740851015
MPN: GS11019010
Package: 1
Box: 10
Pallet: 780
78,48 €
per pcs
EAN: 4012740851022
MPN: GS11019011
Package: 1
Box: 10
Pallet: 780
155,55 €
per pcs
EAN: 4012740851039
MPN: GS12003020
Package: 1
Box: 10
Pallet: 1440
N/A
EAN: 4012740851053
MPN: GS12009010
Package: 1
Box: 10
Pallet: 1440
73,39 €
per pcs
EAN: 4012740993678
MPN: GS11019016
Package: 1
Box: 10
Pallet: 780
149,71 €
per pcs
EAN: 4012740993685
MPN: GS12009016
Package: 1
Box: 10
Pallet: 1440
Suitable for
4012740851060
4012740851084
4012740851114
4012740851121
4012740851138
4012740993692
4012740851145
4012740851169
4012740851176
4012740851190
4012740993708
4012740851206
4012740851244
4012740851251
4012740993715
4012740851268
4012740851275
4012740851299
4012740851312
4012740851336
4012740994774
4012740851343
4012740851367
4012740851374
4012740994804
4012740851381
4012740851398
4012740851428
4012740851435
4012740993722
4012740851480
4012740851497
4012740851510
4012740851527
4012740993739
4012740843270
4012740843294
4012740843362
4012740843461
4012740843485
4012740843492
