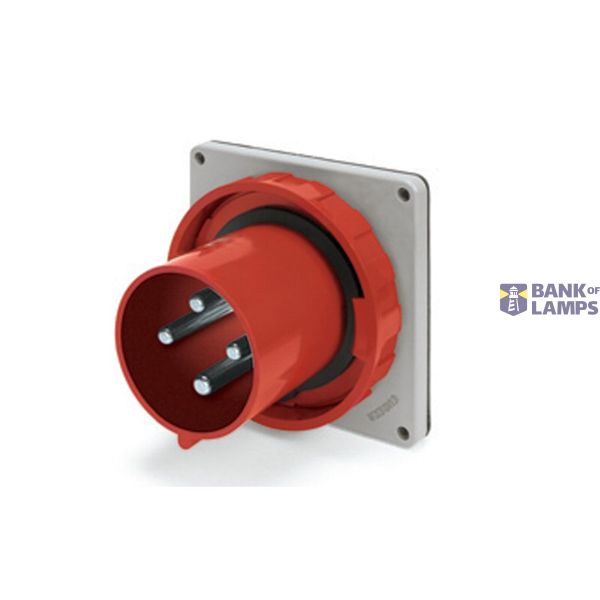

INLET 125A 3P 4W IP67 6h
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | INLET 125A 3P 4W IP67 6h |
| Brand | Scame |
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC001319 |
| Material | Plastic |
| Surface treatment contacts | Nickel-plated |
| IEC-amperage | 125 A |
| Connection system | Screwed terminal |
| Contact material | CuZn |
| Degree of protection (IP) | IP67 |
| Military model | Yes |
| Voltage according to EN 60309-2 | 380-415 V (50+60 Hz) red |
Packing details
| Packing level 1 | 8001636685861 |
Other Technical data
| RAL-number | 7.035 |
| Construction type | Built-up device plug |
| Number of poles | 4 |
| Angle of plug | Angled |
| Phase inverter | No |
| Clock hour position | 6 h |
| Identification colour | Red |
Description
125A 3P 4W 6h 380-415V 50/60Hz 145X145MM Screw terminals
