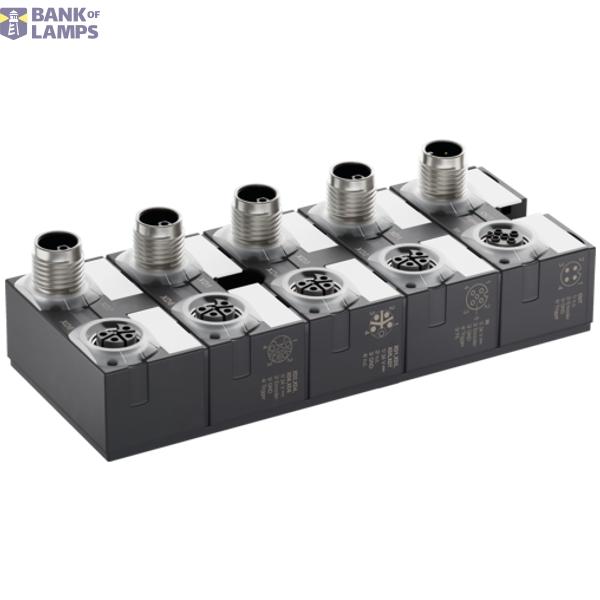

Injection Box MVP12V-FN9F-GH
Order only
EAN: 4048879887373
MPN: 277414
Package: 1
Price (excl. VAT)
261,65 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | Injection Box MVP12V-FN9F-GH |
| Brand | Murrelektronik |
| Categories |
Accessories for Sensors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC003558 |
| Rated voltage | 24 V |
| Operating voltage | 18-28 V |
| Max. current carrying capacity per I/O signal | 16 A |
| Max. current carrying capacity per socket | 16 A |
| Max. total current | 16 A |
| Number of channels per connector slot | 2 |
| Number of sensor-/actuator-slots | 8 |
| Number of poles sensor/actuator slots | 5 |
Packing details
| Packing level 1 | 4048879887373, 4048879887373 |
Other Technical data
| Width | 50 mm |
| Height | 34.5 mm |
| Colour housing | Black |
| Length | 126 mm |
| Housing material | Plastic |
| Operating temperature | -25-45 °C |
| With potential separation | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Material of contact surface | Gold |
| Degree of protection (IP) | IP67 |
| With LED indication | Yes |
| Pollution degree | 3 |
| Connection for NPN-sensors | No |
| Type of branches for sensor-/actuator cables | M12 |
| Thread sleeves sensor/actuator slots | M12 |
| Diameter contact female | 12 mm |
| Fix cable version suitable for cable guide chain | No |
| Type of connector for trunk line | M12 |
| Material contact body | Other copper alloys |
Downloads
Description
Injection Box MVP12V-FN9F-GH
