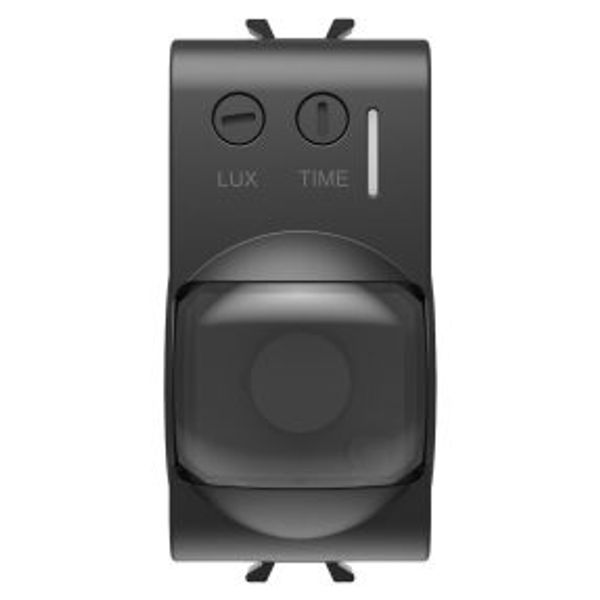

INFRARED MOVEMENT DETECTOR - 230 V ac 50/60 Hz - SATIN BLACK - 1 MODULE - CHORUSMART
Order only
Price (excl. VAT):
69,00 €
EAN: 8034035090929
MPN: GW12594
Package: 1
Box: 4
Pallet: 800
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | INFRARED MOVEMENT DETECTOR - 230 V ac 50/60 Hz - SATIN BLACK - 1 MODULE - CHORUSMART |
| Brand | GEWISS |
| Categories |
Motion & Presence Sensors
|
| Harmonized System Code | 8536 5080 00 |
| Mounting method | Flush mounted (plaster) |
| Colour | Black |
| Width | 22 mm |
| Model | Movement sensor |
| Height | 44 mm |
| Depth | 0 mm |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 10 m |
| Max. transmission range sideways | 10 m |
| Max. switching power | 690 W |
| Scan angle | 120 ° |
| Degree of protection (IP) | IP41 |
| Min. switch-on time | 15 s |
| Max. duty cycle | 10 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 2 m |
| Max. presence range | 0 m² |
| Max. switching power LED | 0 W |
| Sensor type | Passive infrared |
Packing details
| Packing level 1 | 8034035090929 |
| Packing level 2 | 8034035090929 |
| Packing level 3 | 8034035090929 |
Other Technical data
| Halogen free | No |
| Surface protection | Untreated |
| Creep-under protection | No |
| Voltage type | AC |
| Switching-on delay | 0 s |
| Switch-off delay | 0 s |
| Built-in depth | 0 mm |
| With remote control | No |
| Diameter | 0 mm |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Staircase monitoring | Yes |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Temperature | -5-40 °C |
| Max. starting current | 3 A |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | No |
| Response value luminosity | 10-500 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 0 m |
| Remote operation | No |
| HVAC-control | No |
| Constant light control | No |
| Substation input | No |
| RAL-number (similar) | 0 |
| With signal unit | No |
| Control current | 0 mA |
| Teach-function for response value luminosity | No |
| Networkable | No |
| Forced switch off | No |
| Built-in length | 0 mm |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 105 ° |
| Suitable for wall mounting | Yes |
| Number of switching zones | 0 |
| With DALI interface | No |
| IFTTT support available | No |
| Forced switch on | Yes |
| Min. starting current | 0 A |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Suitable for ceiling mounting | No |
| Anti-bacterial treatment | No |
Downloads
Description
CHORUSMART - Domestic range Black modular devices - The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colors and finishes: satin black, elegant and classy. Unlimited functions in reduced spaces: the CHORUSMART range consists of rocker button keys with ½, 1, 2 and 3 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs. Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
