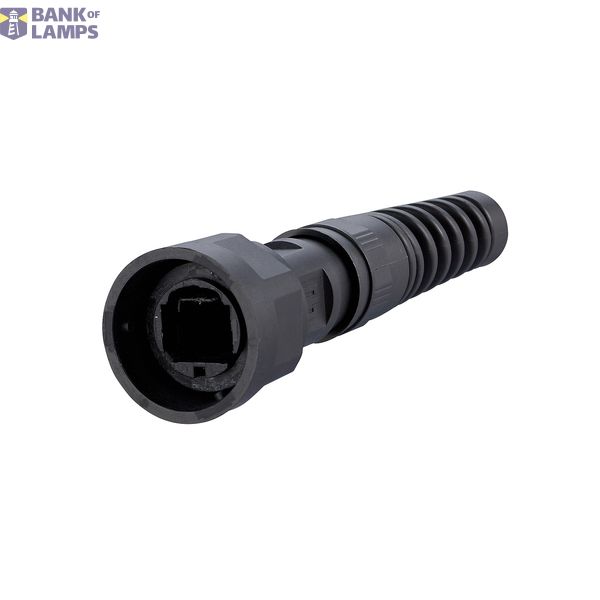

Industry IP67 V1 plug housing bend protected
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Industry IP67 V1 plug housing bend protected |
| Brand | METZ CONNECT |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 7610 9090 00 |
| ETIM | EC000437 |
| Width | 30 mm |
| Height | 30 mm |
| Depth | 125.96 mm |
Packing details
| Packing level 1 | 4250184114079 |
| Packing level 2 | 4250184114079 |
Other Technical data
| UV resistant | No |
| With hinged lid | No |
| Colour housing | Other |
| Locking mechanism | Bayonet |
| Number of conduit inlets | 1 |
| With cable screw gland | No |
| EMC-version | No |
| Corrosion resistant | No |
| Housing material | Plastic |
| Operating temperature | -110 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| With distance piece | No |
| Number of openings | 1 |
| With sealing | Yes |
| Type of housing | Plug case |
| Degree of protection (IP), mounted | IP67 |
| Position cable feed | Other |
| Mounting method of the cable gland | None |
Description
Plug housing with bayonet lock acc. to ISO/IEC 24702 and IEC 61076-3-106 var. 1, IP67 protected housing to hold Industry plug inserts, increased diameter range of 10 mm for connection of cable jackets, resistant to welding sputter, industry-compatible plastic housing with improved durability, flammability class as per UL 94V-0, improved resistance to chemical substances, labeling on plug housing, snap-on clip for color coding after assembly , cable can be pushed through preassembled plug housing, matching plug inserts: E-DAT Industry RJ45 field plug insert, E-DAT Industry RJ45 plug insert, OpDAT Industry 2LC plug insert, OpDAT Industry 2SC plug insert, variants: plug housing, bend-protected plug housing
Accessories
4250184114192
