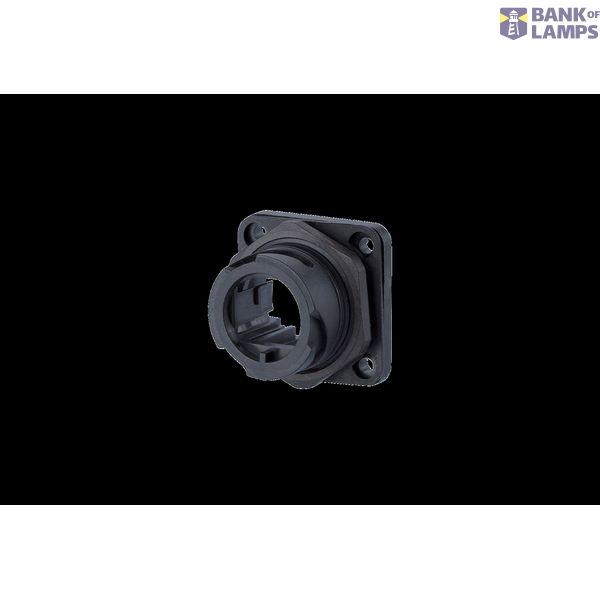

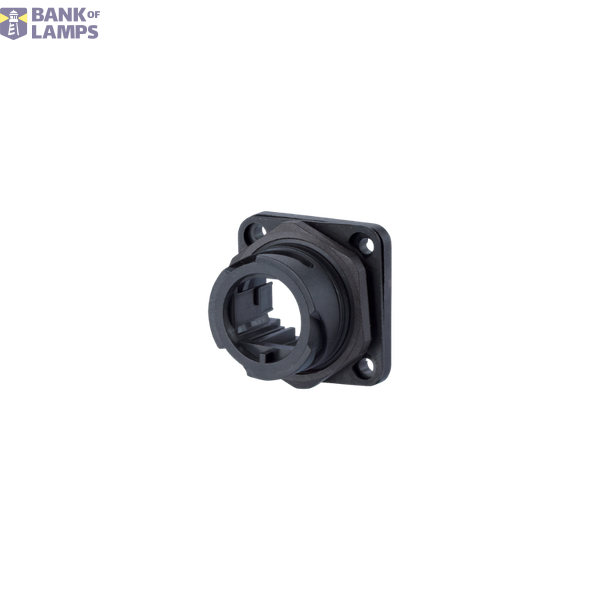

Industry IP67 V1 bulkhead
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Industry IP67 V1 bulkhead |
| Brand | METZ CONNECT |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000437 |
| Width | 32 mm |
| Height | 32 mm |
| Depth | 23.76 mm |
Packing details
| Packing level 1 | 4250184114246 |
| Packing level 2 | 4250184114246 |
Other Technical data
| UV resistant | No |
| With hinged lid | No |
| Colour housing | Black |
| Locking mechanism | Bayonet |
| Number of conduit inlets | 1 |
| With cable screw gland | No |
| EMC-version | No |
| Corrosion resistant | No |
| Housing material | Plastic |
| Operating temperature | -110 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| With distance piece | No |
| Number of openings | 1 |
| With sealing | No |
| Type of housing | Plug case |
| Degree of protection (IP), mounted | IP67 |
| Position cable feed | Other |
| Mounting method of the cable gland | None |
Description
Flange with bayonet lock acc. to ISO/IEC 24702 and IEC 61076-3-106 var. 1, easy to mount due to round wall recesses made with inserts for commercially available punch pliers, mounting type, central screwing, alternative mounting with 4 screws (M3), not included in scope of delivery, mounting on front and back side, industry-compatible plastic housing with improved durability, flammability class as per UL 94V-0, improved resistance to chemical substances, grounding possible on RJ45 insert using 2.8 mm contact pins, one version for all flanges, matching inserts: E-DAT Industry RJ45 field jack insert (T568A, T568B or Profinet), E-DAT Industry RJ45 coupler insert, E-DAT Industry USB coupler insert, OpDAT Industry SC-RJ/2SC adapter insert or OpDAT Industry LC-D adapter insert
