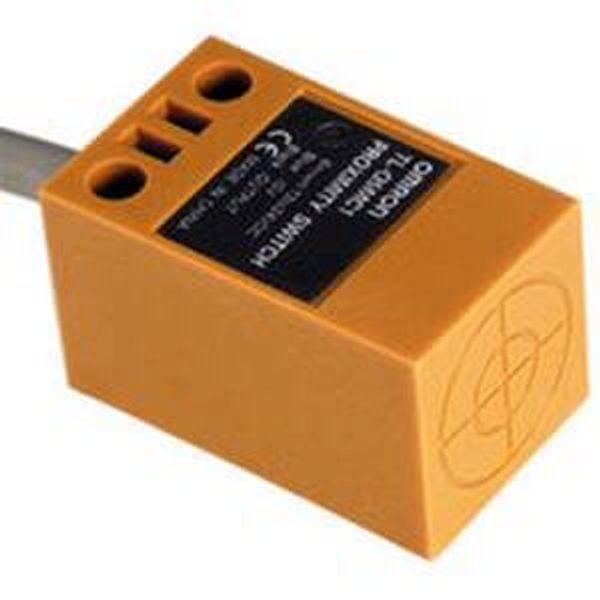

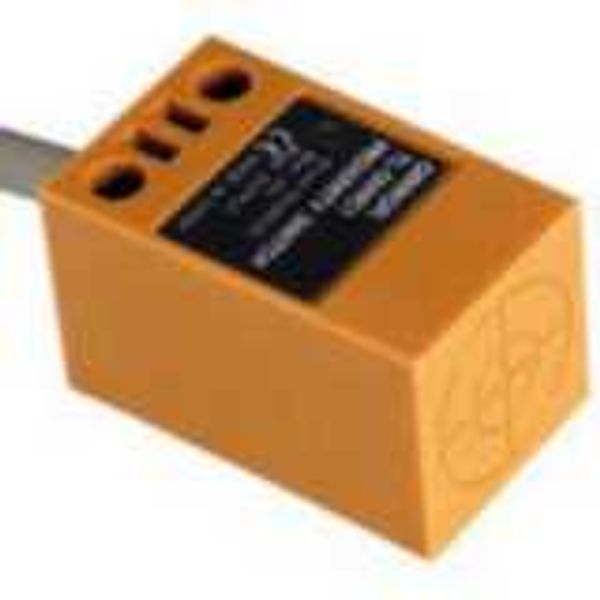

Inductive proximity sensor, unshielded, 5 mm, NPN, NO, 5 m cable TLQ 2002C
Order only
Price (excl. VAT):
26,79 €
EAN: 4536854114861
MPN: TL-Q5MC1 5M
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive proximity sensor, unshielded, 5 mm, NPN, NO, 5 m cable TLQ 2002C |
| Brand | Omron |
| Categories |
Proximity Sensors
|
| Country of origin | NL |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | DC |
| Switching distance | 5 mm |
| Type of electric connection | Other |
| Type of switching output | NPN |
| Type of switch function | Normally open contact |
| Construction type housing | Cuboid |
| Mechanical mounting condition for sensor | Not flat |
| Supply voltage | 10-30 V |
| Performance level according to EN ISO 13849-1 | None |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 4536854114861, 4536854114861 |
Other Technical data
| Cascadable | Yes |
| Housing material | Plastic |
| Suitable for safety functions | No |
| Coating housing | Other |
| Switching frequency | 500 Hz |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Number of protected semiconductor outputs | 0 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | None |
| Rated control supply voltage at DC | 12-24 V |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Type of interface | None |
| Width sensor | 17 mm |
| Compression-resistant | No |
| Height of sensor | 17 mm |
| Length of sensor | 32 mm |
| Interference resistance to magnetic fields | Immune against magnetic DC-field |
| Degree of protection (NEMA) | Other |
Downloads
Description
Inductive proximity sensor, unshielded, 5 mm, NPN, NO, 5 m cable
