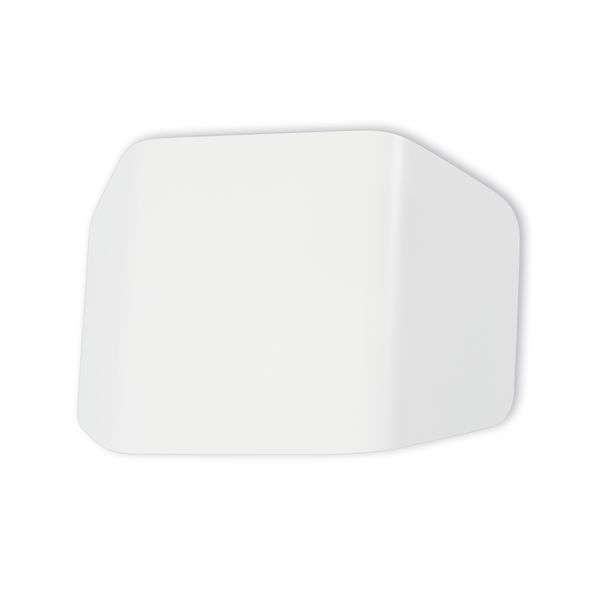

Indoors wall luminaire LM9220D/3K LED 9W/830 WH
Order only
Price (excl. VAT):
105,56 €
EAN: 6438389004755
MPN: LM9220D/3K
Package: 1
Pallet: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Indoors wall luminaire LM9220D/3K LED 9W/830 WH |
| Brand | Ensto |
| Categories |
Wall and ceiling luminaires
Surface mounting lamps |
| Width | 103 mm |
| Colour housing | White |
| Colour rendering index CRI | 90-100 |
| Length | 220 mm |
| Height/depth | 66 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP20 |
| Beam angle | Open beam/diffuse |
| Max. system power | 9 W |
| Rated luminous flux according to IEC 62722-2-1 | 600 lm |
Packing details
| Packing level 1 | 6438389004755, 6438389004755, 6438389004755 |
| Packing level 2 | 6438389004755 |
Other Technical data
| Protection class | I |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| Material cover | Without cover |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| With air slots | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Suitable for ceiling mounting | No |
