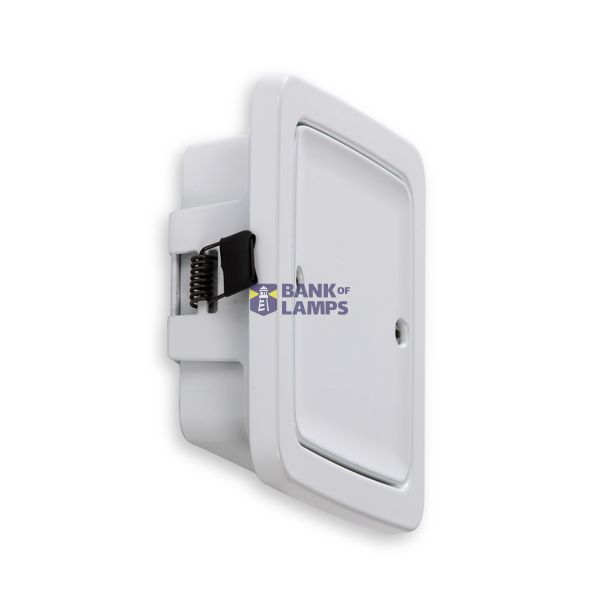

Indoors wall luminaire AVD5 IP64 LED 1x3W PCO VA
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Indoors wall luminaire AVD5 IP64 LED 1x3W PCO VA |
| Brand | Ensto |
| ETIM | EC002892 |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Lamp type | LED exchangeable |
| Impact strength | IK06 |
| Degree of protection (IP) | IP64 |
| Beam angle | Open beam/diffuse |
| Max. system power | 3 W |
| Rated luminous flux according to IEC 62722-2-1 | 120 lm |
Packing details
| Packing level 1 | 6418677625510, 6418677625510 |
| Packing level 2 | 6418677625510 |
Other Technical data
| Protection class | II |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device voltage-controlled |
| Built-in width | 123 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Built-in length | 123 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| With air slots | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Suitable for ceiling mounting | No |
| Built-in height/depth | 36 mm |
Description
AVD5 is a multi-purpose combined luminaire, combining good features from both LED- and fiber luminaires. Due to its structure luminaire can be used both inside and outside premises as well as in special areas, where luminaire itself can not be placed where light is needed.
