Inbouwdoos
Order only
Price (excl. VAT):
Price by request
EAN: 4013960343601
MPN: 26680025
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Inbouwdoos |
| Brand | FRÄNKISCHE |
| Categories |
Flush Mounted Junction Boxes
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 3926 9097 00 |
| Mounting method | Flush mounted (plaster) |
| Model | Single |
| Shape | Round |
| Equipped with | None |
| Connectable | Yes |
| Degree of protection (IP) | IP2X |
| Provided with revolving ring | No |
| Degree of protection (NEMA) | Other |
Packing details
| Packing level 1 | 4013960343601 |
Other Technical data
| Colour | Black |
| Width | 60 mm |
| Halogen free | Yes |
| Surface protection | Untreated |
| Diameter | 60 mm |
| Construction type | Built-in installation box (device box) |
| Inner depth | 66 mm |
| Length | 80 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 12 |
| Mounting switching equipment | Screw or spread out |
| Cover attachment | Other |
| For number of electric fittings | 1 |
| Luminaire hook mounting | No |
| With screening | No |
| With screws | No |
| Air tight | Yes |
| Depth | 68 mm |
| Suitable for cable diameter | 1-25 mm |
| For tube diameter | 25 mm |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Special application | None |
| Clamp position fixed | No |
| Nozzle | None |
| Housing feed-through by seal membrane | Yes |
| Housing feed-through by nozzle | Yes |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Number of included spouts | 0 |
| Cover model | None |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Downloads
Description

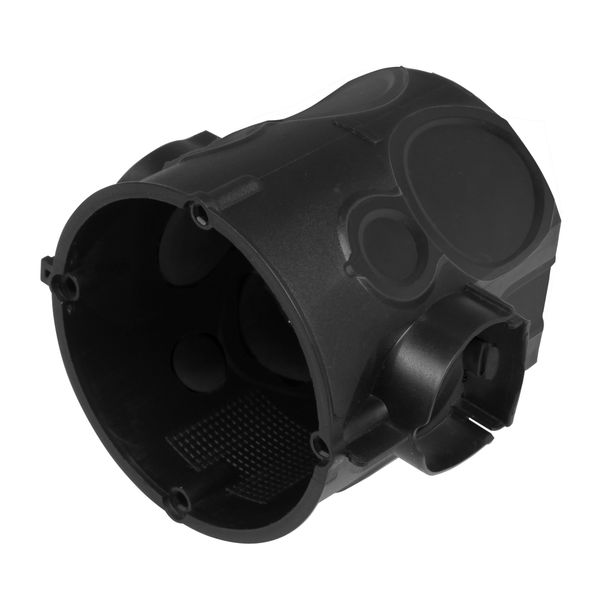

De ReMo UP-doos is een luchtdichte inbouwdoos, in zwart (RAL 9005). De ReMo UP-doos wordt met name gebruikt voor de flexibele kunststof buizen FFKu-ReMo click en FFKuS DATALIGHT®. Het voordeel is de invoer aan de achterzijde. Hierdoor kan de buis vanaf de buitenwand direct in de doos worden gevoerd.
