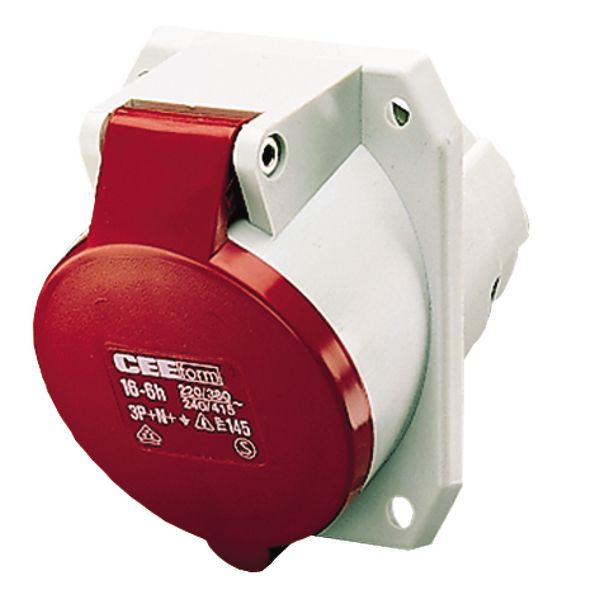

Inbouwcontactdoos 16A 5P 6H 400V IP44 image 1
Mennekes

Inbouwcontactdoos 16A 5P 6H 400V IP44

Order Only
Price (excl. VAT):
68,57 €
This price is valid until 24.12.25
EAN: 4015394000754
MPN: 145
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Inbouwcontactdoos 16A 5P 6H 400V IP44
Brand Mennekes
Categories CEE Sockets
Country of origin DE
Harmonized System Code 8536 6990 00
Number of poles 5
Material Plastic
IEC-amperage 16 A
Connection system Screwed terminal
Rated voltage 399-400 V

Packing details

Packing level 1 4015394000754

Other Technical data

RAL-number 0
Cable entry Other
Rated frequency 50-60 Hz
Amperage according to UL/CSA (for UL-version) 20 A
Angle of plug Angled
Degree of protection (IP) IP44
Military model No
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Drill hole distance vertical 70 mm
Drill hole distance horizontal 52 mm
Flange size vertical 87 mm
Flange size horizontal 71 mm

Description

Wandcontactdoos inbouw 16A5P 6H400V IP44
