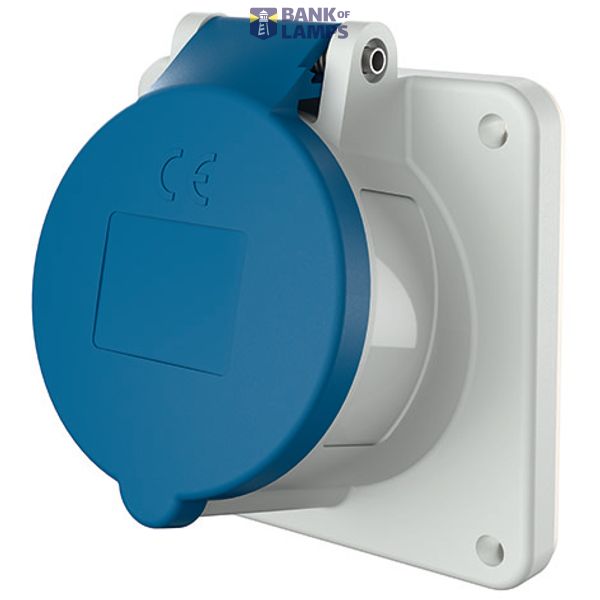

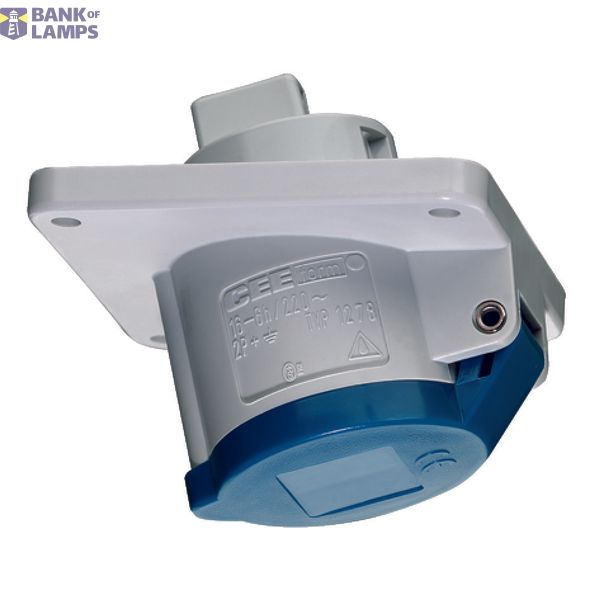

Inbouwcontactdoos 16A 4P 9H 230V IP44
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | Inbouwcontactdoos 16A 4P 9H 230V IP44 |
| Brand | Mennekes |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001317 |
| Number of poles | 4 |
| Material | Plastic |
| IEC-amperage | 16 A |
| Connection system | Screwed terminal |
| Rated voltage | 229-230 V |
Packing details
| Packing level 1 | 4015394009207 |
Other Technical data
| RAL-number | 0 |
| Cable entry | Other |
| Rated frequency | 50-60 Hz |
| Amperage according to UL/CSA (for UL-version) | 20 A |
| Angle of plug | Angled |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Clock hour position | 9 h |
| Identification colour | Blue |
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
| Drill hole distance vertical | 70 mm |
| Drill hole distance horizontal | 70 mm |
| Flange size vertical | 85 mm |
| Flange size horizontal | 85 mm |
Downloads
Description
Wandcontactdoos inbouw 16A 4p 9h 230V IP44
Others
Order only
4,12 €
Subtotal: 41,20 €
MOQ: 10
EAN: 3250610092408
MPN: WDA4527R
Package: 1
