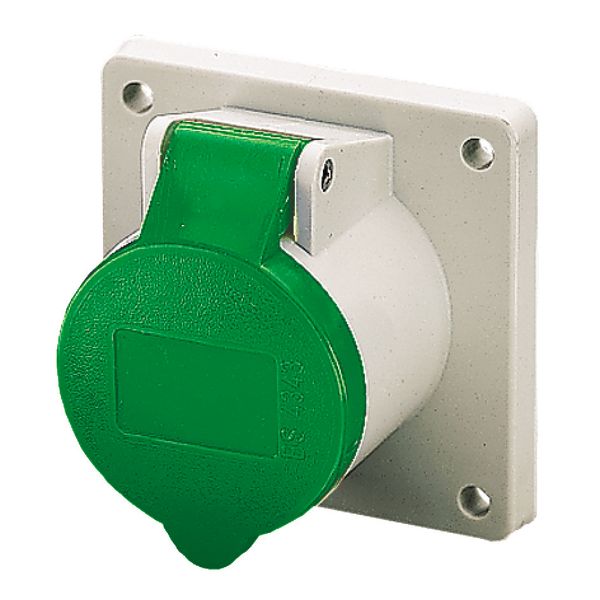

Receptacle TA, 16A4p 2h>50-500V, IP44
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
18,86 €
EAN: 4015394010265
MPN: 1393
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Receptacle TA, 16A4p 2h>50-500V, IP44 |
| Brand | Mennekes |
| Categories |
CEE Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Number of poles | 4 |
| Material | Plastic |
| IEC-amperage | 16 A |
| Connection system | Screwed terminal |
| Rated voltage | 50-500 V |
Packing details
| Packing level 1 | 4015394010265 |
Other Technical data
| RAL-number | 0 |
| Cable entry | Other |
| Rated frequency | 300-500 Hz |
| Amperage according to UL/CSA (for UL-version) | 20 A |
| Angle of plug | Straight |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Clock hour position | 2 h |
| Identification colour | Green |
| Voltage according to EN 60309-2 | 50-500 V (>300-500 Hz) green |
| Drill hole distance vertical | 60 mm |
| Drill hole distance horizontal | 60 mm |
| Flange size vertical | 75 mm |
| Flange size horizontal | 75 mm |
Description
Inbouwcontactdoos 16A 4P 10H 50-500V 300-500HZ IP44
