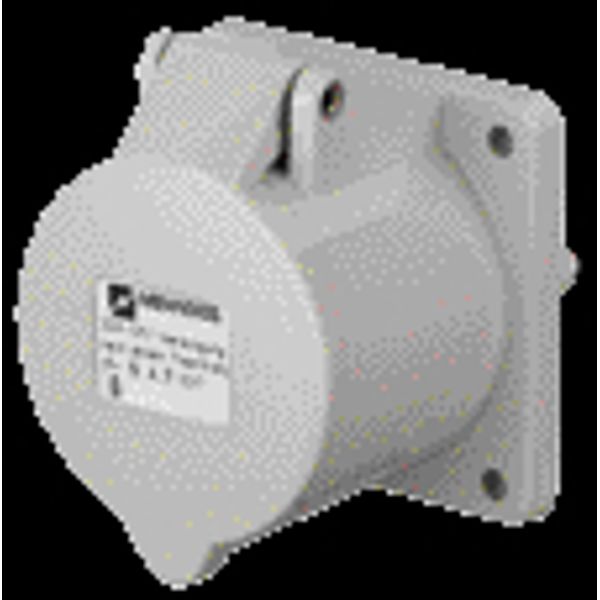

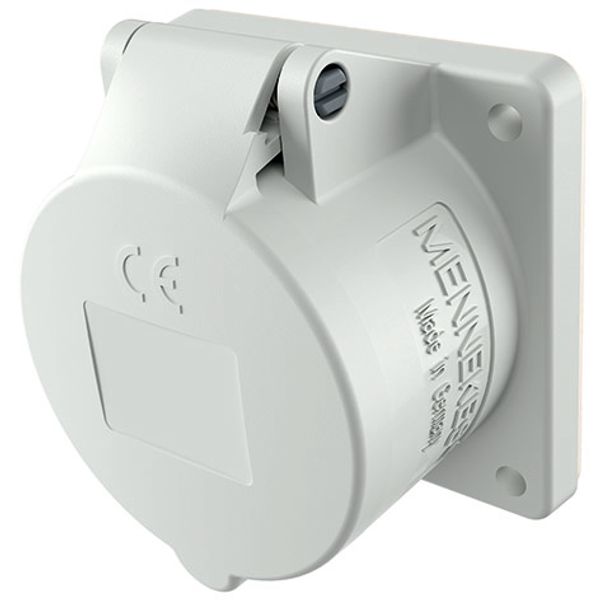

Inb. WCD 16A 3P 3H >50-250VDC IP44 TA
Order Only
Minimal order quantity: 1
Price (excl. VAT):
19,66 €
EAN: 4015394018216
MPN: 3216
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inb. WCD 16A 3P 3H >50-250VDC IP44 TA |
| Brand | Mennekes |
| Categories |
CEE Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Number of poles | 3 |
| Material | Plastic |
| IEC-amperage | 16 A |
| Connection system | Screwed terminal |
| Rated voltage | 50-250 V |
Packing details
| Packing level 1 | 4015394018216 |
Other Technical data
| RAL-number | 0 |
| Cable entry | Other |
| Amperage according to UL/CSA (for UL-version) | 20 A |
| Angle of plug | Straight |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Clock hour position | 3 h |
| Identification colour | Grey |
| Voltage according to EN 60309-2 | >50-250 V DC grey |
| Drill hole distance vertical | 60 mm |
| Drill hole distance horizontal | 60 mm |
| Flange size vertical | 75 mm |
| Flange size horizontal | 75 mm |
Downloads
Description
Wandcontactdoos inbouw 16A 3P 3H >50-250VDC IP44 TA
Accessories
4015394047445
4015394047964
