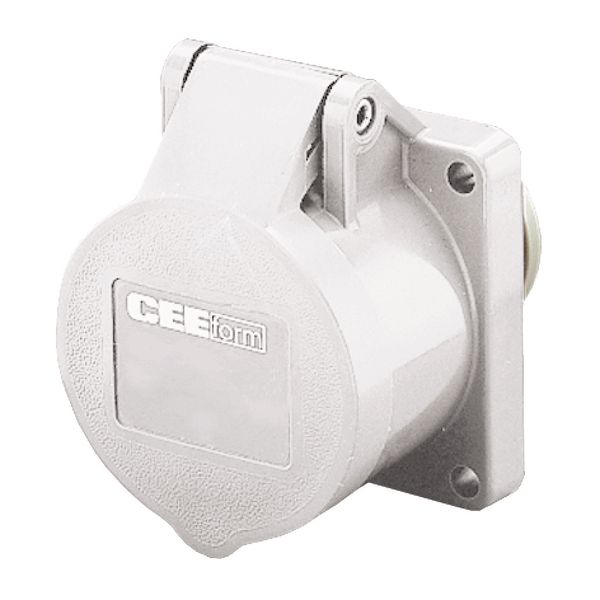

Mennekes Panel mounted recept., 16A2p10h, IP44 609
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
17,16 €
EAN: 4015394004530
MPN: 609
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Mennekes Panel mounted recept., 16A2p10h, IP44 609 |
| Brand | Mennekes |
| Categories |
CEE Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Number of poles | 2 |
| Material | Plastic |
| IEC-amperage | 16 A |
| Connection system | Screwed terminal |
Packing details
| Packing level 1 | 4015394004530 |
Other Technical data
| RAL-number | 0 |
| Cable entry | Other |
| Amperage according to UL/CSA (for UL-version) | 20 A |
| Angle of plug | Straight |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Clock hour position | 10 h |
| Identification colour | Grey |
| Voltage according to EN 60309-2 | <50 V DC grey |
| Drill hole distance vertical | 45 mm |
| Drill hole distance horizontal | 45 mm |
| Flange size vertical | 55 mm |
| Flange size horizontal | 55 mm |
Downloads
Description
Wandcontactdoos inbouw 16A 2P 10H 50VDC IP44
