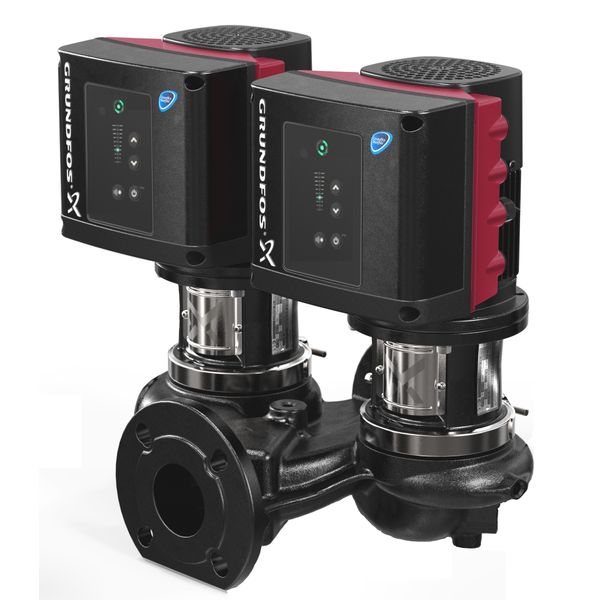

In-line circulator pump TPE2 D 80-120-N-AI-F-A-BQQE 1x230V PN6
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
6 360,95 €
EAN: 5711495019839
MPN: 98438579
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | In-line circulator pump TPE2 D 80-120-N-AI-F-A-BQQE 1x230V PN6 |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin | HU |
| Harmonized System Code | 8413 7051 00 |
| Nominal current | 5.88 A |
| Number of phases | 1 |
| Max. discharge flow | 62 m³/h |
| Max. static height | 12 m |
| Flange shape | Round |
| Rotational speed | 3000 1/min |
| Ambient temperature | -20 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |

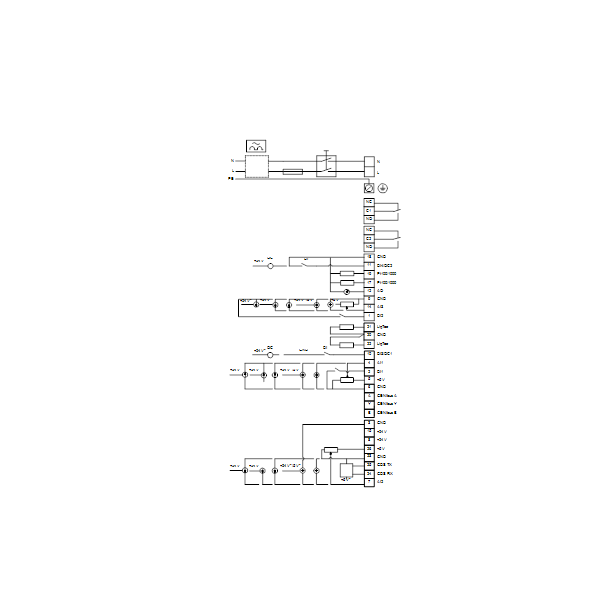

| Electrical connection | Terminals |
| Rated voltage | 200 V |

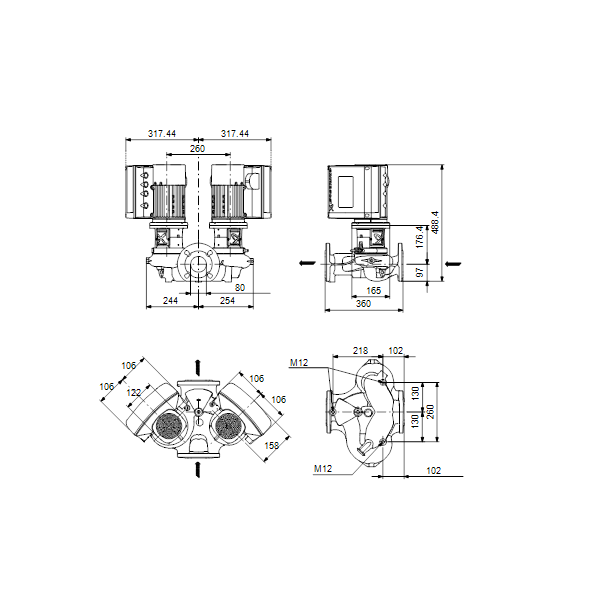

| Built-in length | 360 mm |
| Explosion-proof | No |
| Frequency | 50/60 Hz |
| Degree of protection (IP) | IP55 |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Other |
| Motor power output (P2) per motor | 1.1 kW |
| Minimum Efficiency Index (MEI) | 0.7 |
| Volume flow rate (BEP) | 34.5 m³/h |
| Discharge head at flow rate (BEP) | 77.45 kPa |
| Connection standard inlet side | EN 1092-2 |
| Connection standard outlet side | EN 1092-2 |
| Standard motor | Yes |
| Motor efficiency class | IE5 |
| Communication | Built-in and prepared |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | Yes |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Self-priming | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 6 bar |
| Material pump casing | Cast iron |
| Double pump | Yes |
| Insulation class according to IEC | F |
| Motor with extended shaft | No |
| Material quality pump casing | Cast iron GG 25 (GJL-250) |
| Medium temperature (continuous) | -25 °C |
| Connection inlet side | Flange |
| Nominal diameter connection inlet side | DN 80 |
| Nominal diameter connection outlet side | DN 80 |
| Connection outlet side | Flange |
| Flange compression stage connection inlet side | PN 6 |
| Flange compression stage connection outlet side | PN 6 |
Packing details
| Packing level 1 | 5711495019839, 5711495019839 |
Downloads
Description
Single-stage, close-coupled, volute twin-head pump with in-line suction and discharge ports of identical diameter. The twin-head pump is designed with two parallel power-heads. The pump is of the top-pull-out design.
