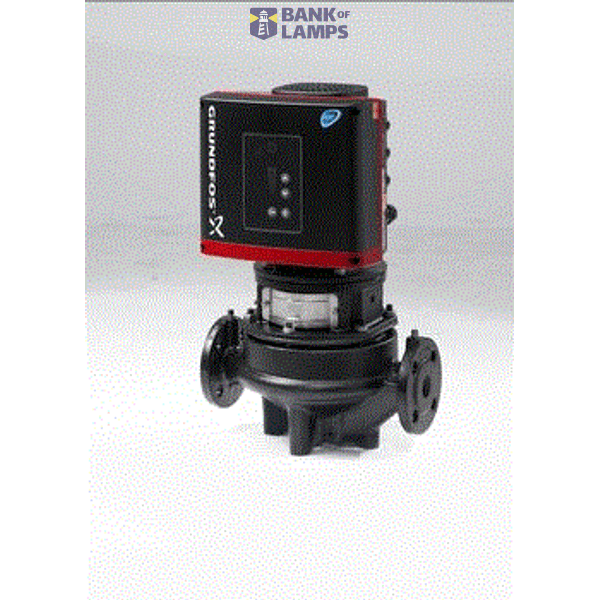

In-line circulator pump TPE 25-80/2 A-O-A-BQQE 0.25 kW 1x230V 50Hz HR
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | In-line circulator pump TPE 25-80/2 A-O-A-BQQE 0.25 kW 1x230V 50Hz HR |
| Brand | GRUNDFOS |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7051 00 |
| ETIM | EC011333 |
| Nominal current | 1.56 A |
| Number of phases | 1 |
| Max. discharge flow | 8.32 m³/h |
| Max. static height | 8 m |
| Rotational speed | 2820 1/min |
| Ambient temperature | -20 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |
| Electrical connection | Terminals |
| Rated voltage | 200 V |

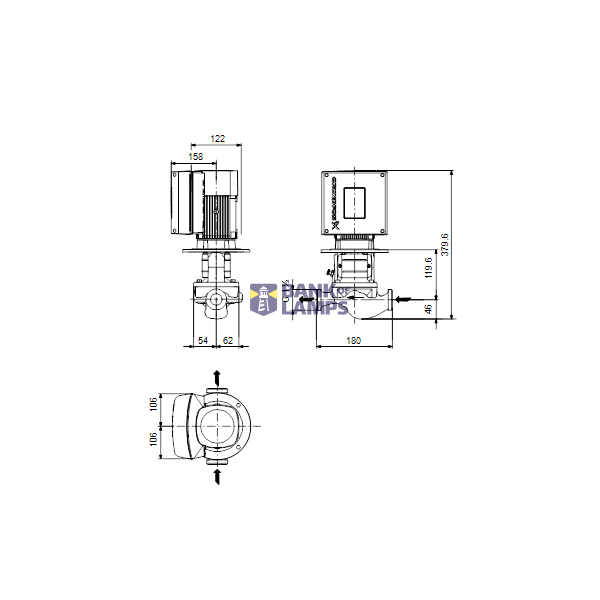

| Built-in length | 180 mm |
| Explosion-proof | No |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP55 |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Other |
| Motor power output (P2) per motor | 0.18 kW |
| Minimum Efficiency Index (MEI) | 0.55 |
| Volume flow rate (BEP) | 6.32 m³/h |
| Discharge head at flow rate (BEP) | 39.22 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Standard motor | Yes |
| Motor efficiency class | IE5 |
| Communication | Built-in and prepared |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | Yes |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Self-priming | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Cast iron |
| Double pump | No |
| Insulation class according to IEC | F |
| Motor with extended shaft | No |
| Material quality pump casing | Cast iron GG 15 (GJL-150) |
| Medium temperature (continuous) | -25 °C |
| Connection inlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter connection inlet side | 1 1/2 inch (40) |
| Nominal diameter connection outlet side | 1 1/2 inch (40) |
| Connection outlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Flange compression stage connection inlet side | PN 10 |
| Flange compression stage connection outlet side | PN 10 |
Packing details
| Packing level 1 | 5711496569197, 5711496569197 |
Downloads
Description
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. Top-pull-out design, i.e. the power head can be removed for maintenance or service while the pump housing remains in the pipework.
